Serial port to WIFI transparent transmission test version
HLK-M20 WiFi module integrates DBB/PMIC/RF/PA/Memory/LNA/Balun and supports 2.4GHz IEEE 802.11b/g/n.
The module is quite excellent in power consumption control. Rx power consumption is 1/2 of the same type of low-power WiFi modules on the market, Tx power consumption is only 70% of theirs, and power consumption in deep sleep mode is only 8uA, DTIM1 power consumption is 0.9mA.

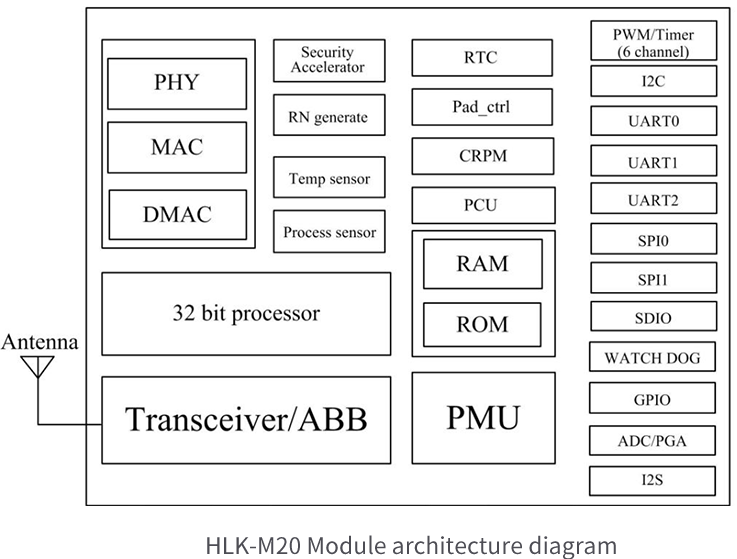

Functional structure diagram

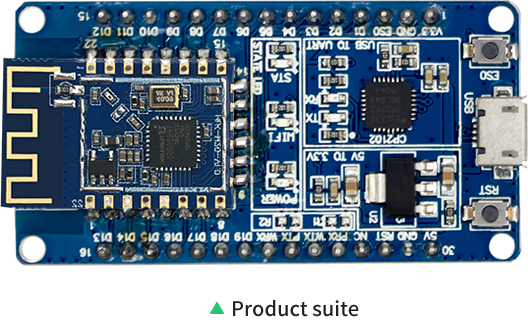

M20 module + function base board + USB cable*1 (power supply)

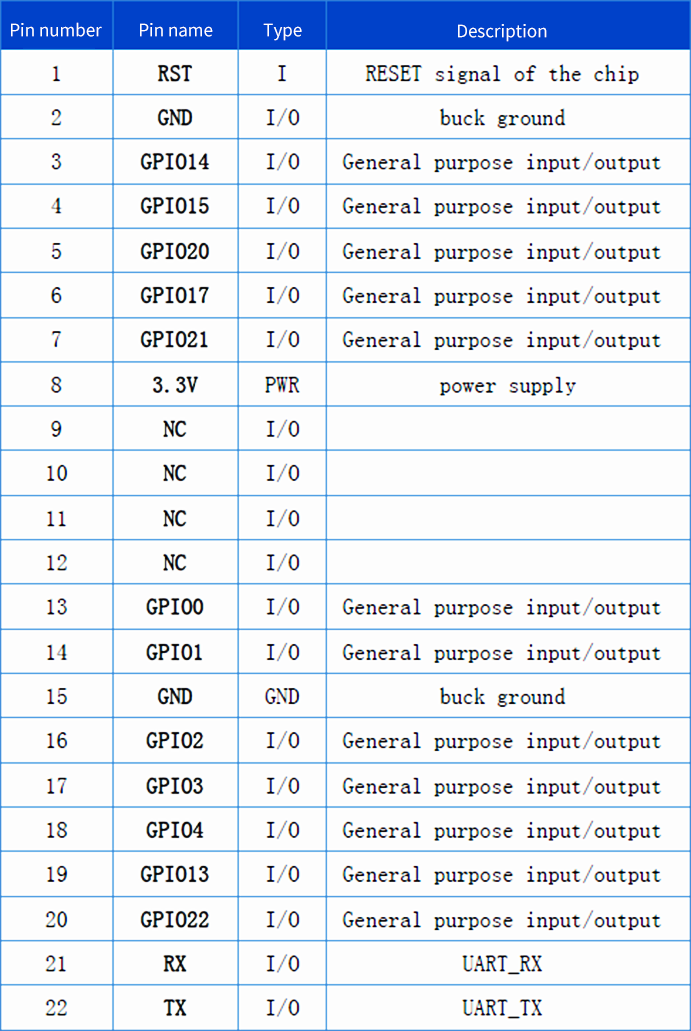

1. The figure is the default definition, and the multiplexing function is not listed.
2. Please leave the unused function of each foot in the air, do not arbitrarily pull up or down, so as not to cause the module to start abnormally.
Pin type definition:
I/O → Digital input/output;
I → Digital input
O → Digital output
Product HLK-M20 supports serial port to WiFi STA, serial port to WiFi AP mode

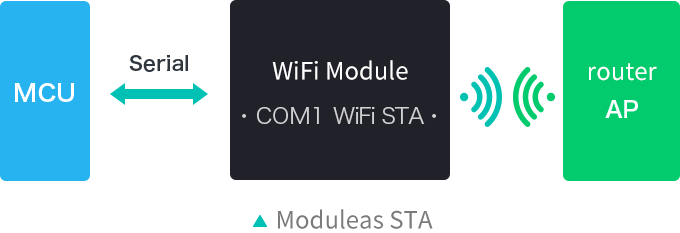

·In this mode (STA mode), through settings, the data of COM1 and WiFi can be converted mutually.
·WiFi security supports the current mainstream encryption methods.

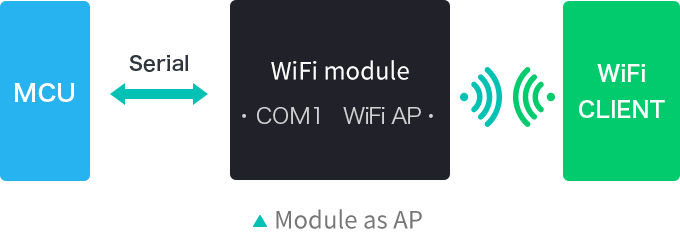

·In this mode (AP mode), through settings, the data of COM1 and WiFi can be converted mutually.
·The WiFi device can connect to the product and become a device under the WiFi LAN.
·WiFi security supports the current mainstream encryption methods.
Network parameters | |
Network Standard | Wireless standard: IEEE 802.11n/g/b span> |
wireless transmission | 11n: 150Mbps (MAX) 11g: 54Mbps (MAX) 11b: 11Mbps (MAX) |
Number of channels | 1-11 |
Frequency range | 2.4-2.4835GHz |
Transmit power | 15-20dBm |
antenna | |
antenna interface | onboard antenna |
Function parameters | |
WIFI working mode | wireless network card/wireless access point |
WDS function | support WDS wireless bridging |
Wireless Security | 64/128/152 bit WEP encryption span> WEP, WPA, WPA2(TKIP,CCMP) security mechanism (in AP mode Only supports WPA2-CCMP) |
| Configuration method | Serial AT command |
| Serial port to network | |
| connection type | TCP/UDP Server/Client |
| Maximum number of connections | 5 (TCP Server) |
| Serial port baud rate | 1200-500000bps |
| Hardware parameters | |
| Core chip | TR6260 |
| interface type | UART/I2S/I2C/PWM/SPI/SDIO/GPIO /ADC/ PGA |
| working voltage | 3.3V |
| Working current | average 60mA, peak 100mA, Deep sleep 8uA |
| RAM (built-in) | User SRAM 128K Bytes |
