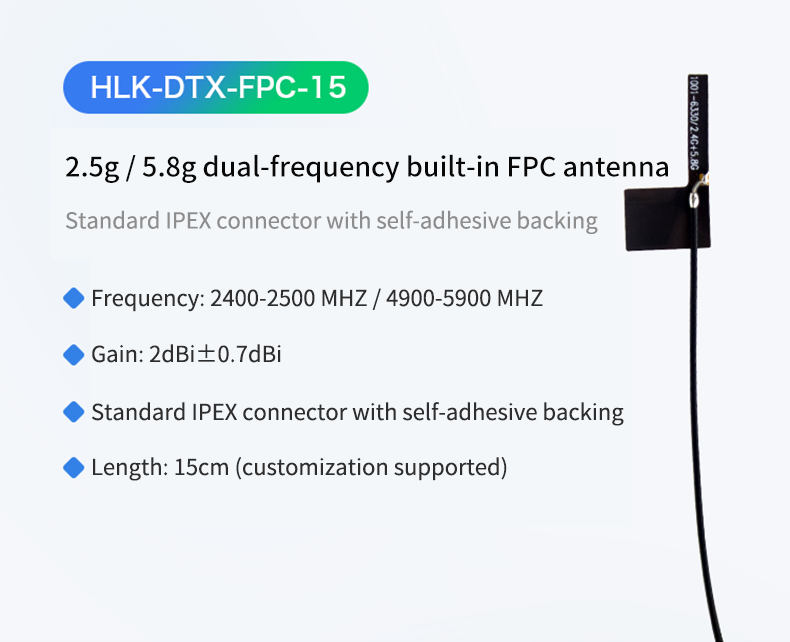

Omnidirectional high gain wireless WiFi module antenna Built-in FPC flexible antenna Standard IPEX connector
Name2.4G/5.8G omnidirectional high gain antenna
frequency band2400-2500MHz 4900-5900MHz
Gain2dBi±0.5dBi
Standing Wave Ratio≤2.0
Impedance50Ω
out-of-roundness±0.5dB
input impedance50Ω
Antenna size13×150×0.5mm
Connector formIPEX-1
WireRF1.13
Line lengthThe total length is about 15cm (50pcs can be customized)
Name | 2.4G/5.8G omnidirectional high gain antenna |
frequency band | 2400-2500MHz 4900-5900MHz |
Gain | 2dBi±0.5dBi |
Standing Wave Ratio | ≤2.0 |
impedance | 50Ω |
out-of-roundness | ±0.5dB |
input impedance | 50Ω |
antenna size | 13×150×0.5mm |
connector style | IPEX-1 |
wire | RF1.13 |
Line length | The total length is about 15cm (50pcs can be customized) |
