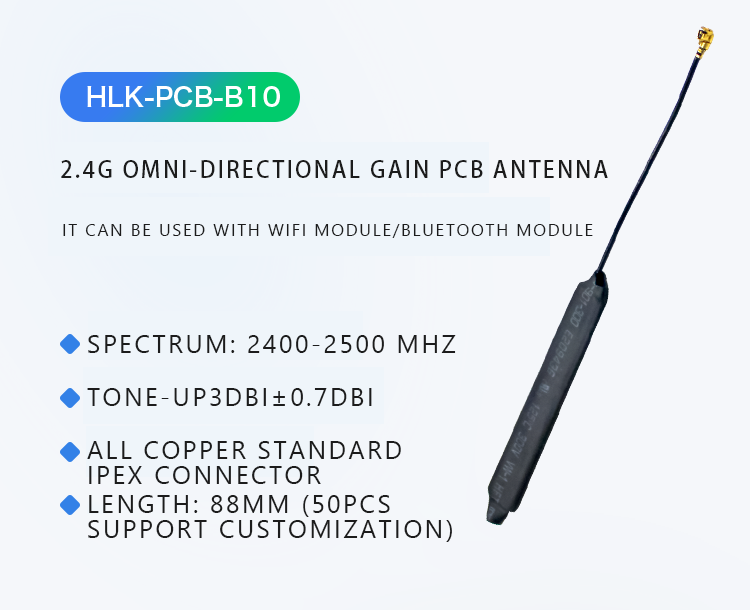

Omnidirectional high gain wifi module built-in antenna 2DB standard IPEX connector Outer rubber surface anti-short circuit
Name2.4G omnidirectional gain PCB antenna
frequency band2400-2500MHz
Gain3dBi±0.7dBi
Standing Wave Ratio≤2.0
Impedance50Ω
out-of-roundness±0.5dB
input impedance50Ω
Connector formIPEX-1
WireRF1.13
Line lengthTotal length is about 88mm (50pcs can be customized)
Name | 2.4G omnidirectional gain PCB antenna |
frequency band | 2400-2500MHz |
Gain | 3dBi±0.7dBi |
Standing Wave Ratio | ≤2.0 |
impedance | 50Ω |
out-of-roundness | ±0.5dB |
input impedance | 50Ω |
connector style | IPEX-1 |
wire | RF1.13 |
Line length | Total length is about 88mm (50pcs can be customized) |
