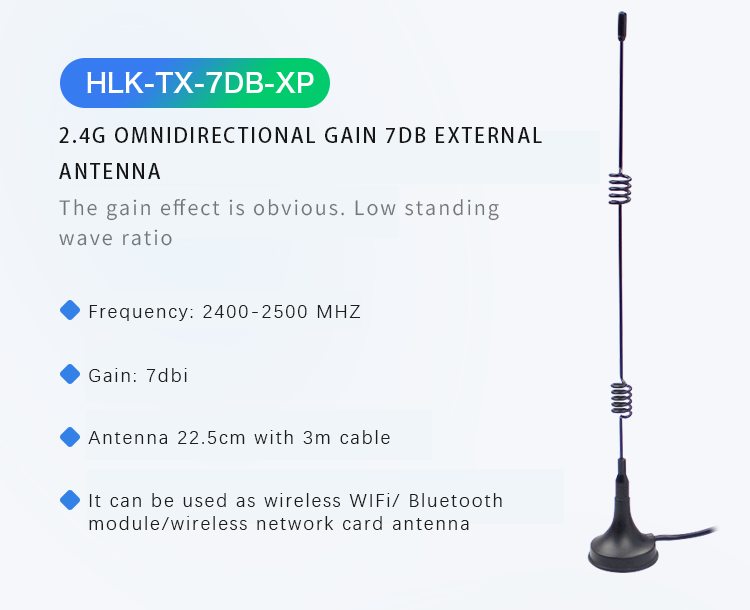

WiFi module external antenna omnidirectional high gain 7DB sucker antenna SMA interface with 3 meter extension cable
Name2.4G omnidirectional high gain 7DB suction cup antenna
frequency band2400-2500MHz
Gain7dBi
resistance standing wave ratio≤2.0
Impedance50Ω
PolarizationVertical
Lightning protectionDC grounding
Antenna size22.5cm (with 3m cable)
Connector formSMA (inner screw inner hole)
Working temperature-20~60℃
Name | 2.4G omnidirectional high gain 7DB suction cup antenna |
frequency band | 2400-2500MHz |
Gain | 7dBi |
resistance standing wave ratio | ≤2.0 |
impedance | 50Ω |
Polarization | Vertical |
Lightning protection | DC grounding |
antenna size | 22.5cm (with 3m cable) |
connector style | SMA (inner screw hole) |
Working temperature | -20~60℃ |
