Digital input signal acquisition frequency100Hz

Minimum switching time of relay output＜10ms

Time accuracy (jog/delay/cycle)10ms

Time range (jog/delay/cycle)1-60000,10ms 10ms-10min

Clock error＜5s/d

Timing accuracy1min

Timing rangeMonth:day:hour:minute Support monthly/weekly/daily/hour/minute

Timing typeTime point and time period

Number of automatic control items6 items, each item can be turned on or off independently

Automatic control optionalTime point / time period / linkage Time point linkage / time period linkage

Number of output actionsClosing/opening/reversing/jogging, optional delay execution or cyclic execution

Indicator nameState description

PWRCommunication and equipment status indicator, on when there is communication data

LEDCommunication and equipment status indicator, on when there is communication data

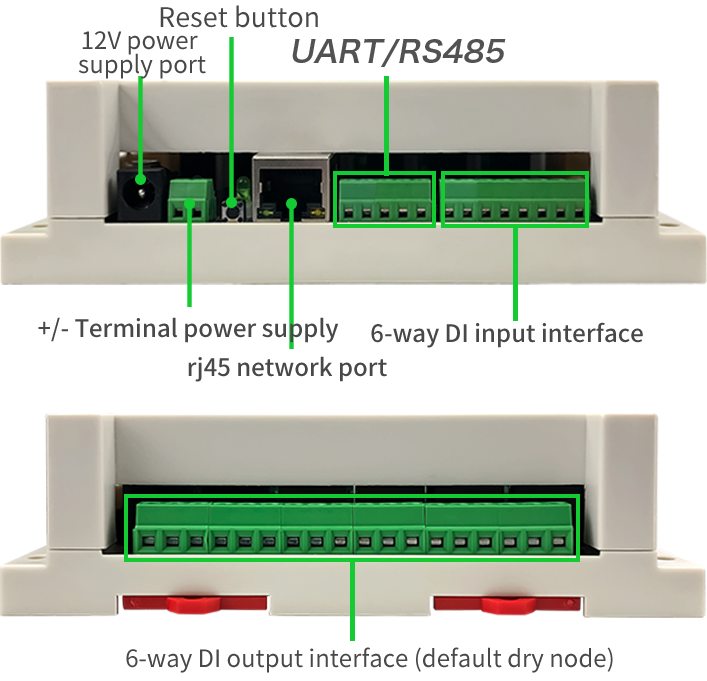

Output status indicatorStatus indicator lights corresponding to the 6 digital outputs, which are on when the corresponding relay is closed, and off when the relay is disconnected

function buttonRestore factory settings button, press and hold for 6 to 10 seconds and then release
