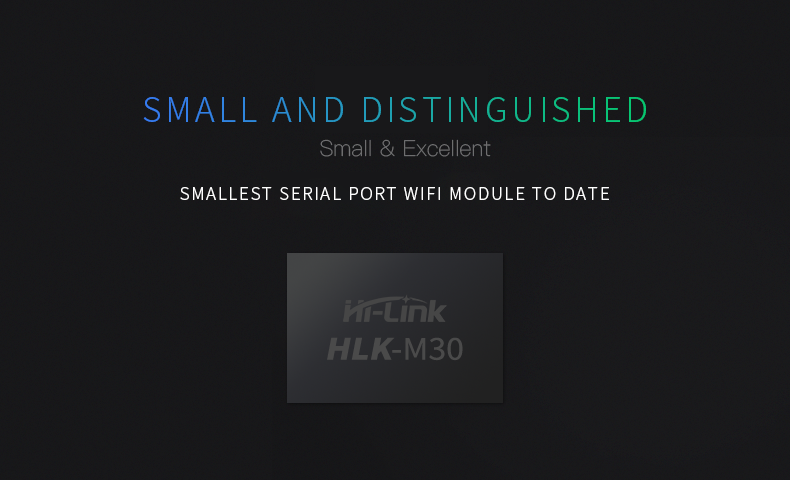

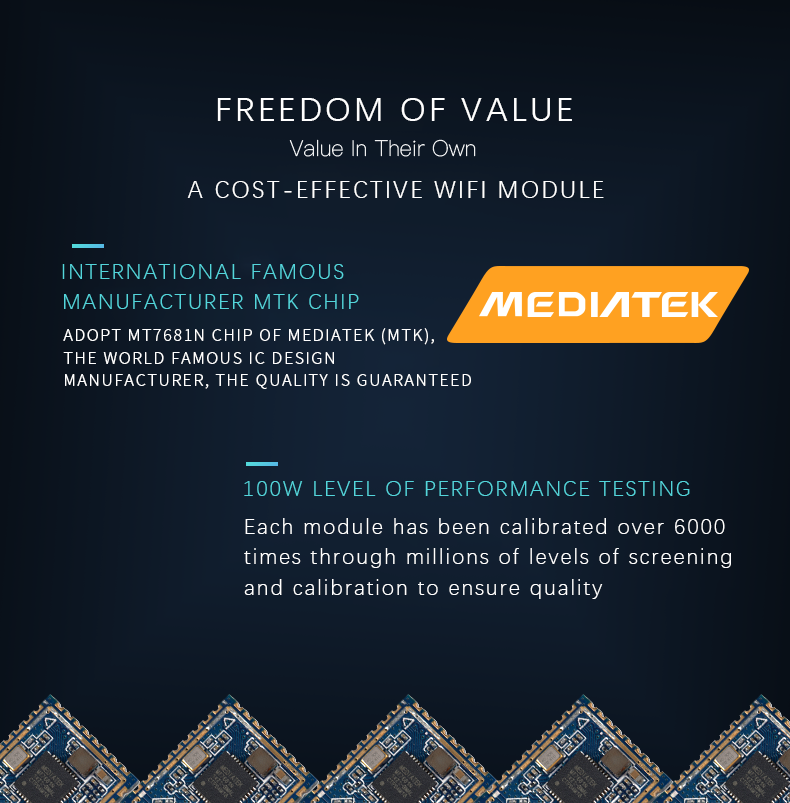

Embedded intelligent IoT serial port to WiFi module M30 has small size/low power consumption/fast networking /MT7681
basic parameter | |
WLAN STANDARD | IEEE 802.11n、IEEE 802.11g、IEEE 802.11b |
Wireless communication Speed | 11n:Up to 150Mbps |
channel number | 1-14 |
frequency rang | 2.4-2.4835G |
Output Power | 14-18 DBM |
port | serial port、GPIO |
antenna | |
Type of antenna | External antenna |
transmission distance | 100-300Meters (different environmental conditions, different transmission distances) |
functional parameter | |

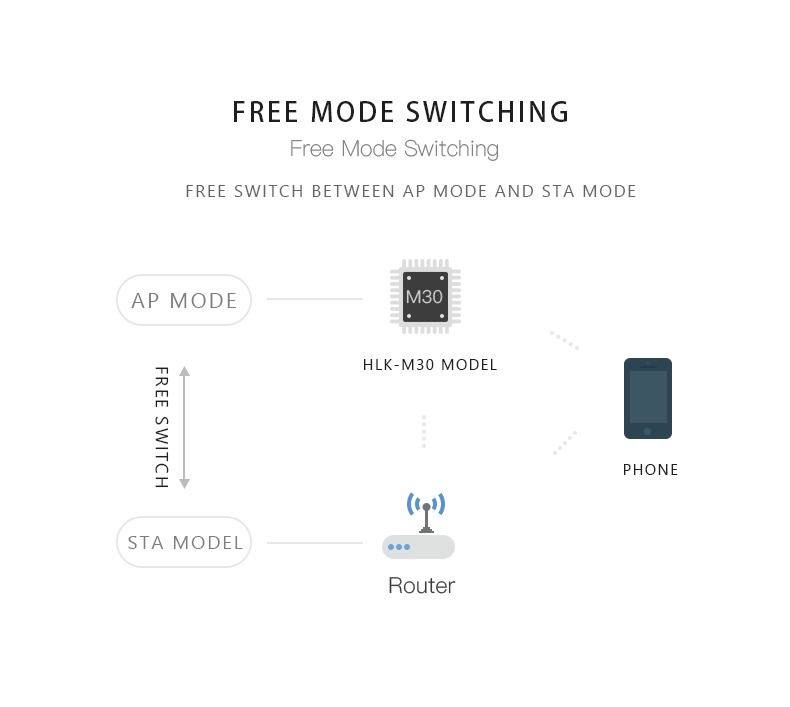

WIFIwork pattern | Wireless network card/wireless access point |
Wireless security | Wireless security features |
64/128/152-bit WEP encryption | |
WPA-PSK/WPA2-PSK、WPA/WPA2 security mechanism | |

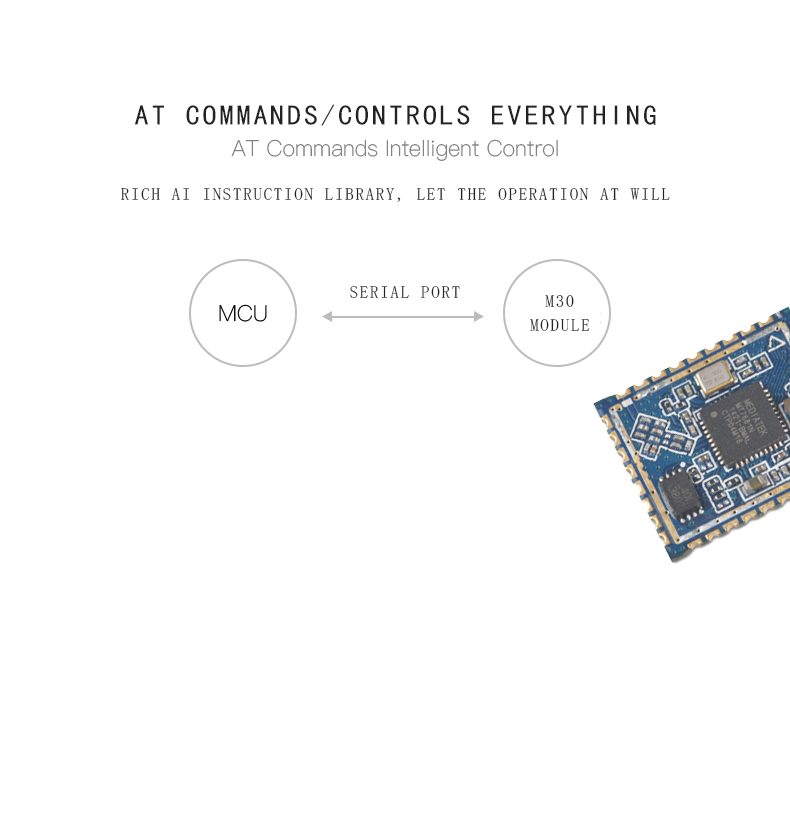

Serial port to network | |
Maximum Transfer Rate | 115200bps |
TCPconnect | Max Connections 4 |
UDPconnect | Max Connections 4 |
The Other Parameter | |
status indicator lamp | status indicator |
environmental standards | operating temperature：-20-70℃ |
operating humidity：10%-90%RH（noncondensing） | |
storage temperature：-40-80℃ | |
Storage Humidity：5%-90%RH（noncondensing） | |
Access Connections | Band bandwidth is optional：20MHz、40MHz，auto |
