High efficiency GaN gallium nitride power module
A variety of specifications of power modules to choose
MULTIPLE SPECIFICATIONS AVAILABLE
International universal voltage 85-264VAC/120-350VDC 30W power module
| MODEL | POWER | VOLTAGE | ELECTRICITY |
| HLK-30M05 | 30W | 5V | 6000mA |
| HLK-30M09 | 30W | 9V | 3333mA |
| HLK-30M12 | 30W | 12V | 2500mA |
| HLK-30M15 | 30W | 15V | 2000mA |
| HLK-30M24 | 30W | 24V | 1250mA |
| *The package and pin size of the same series products are consistent | |||

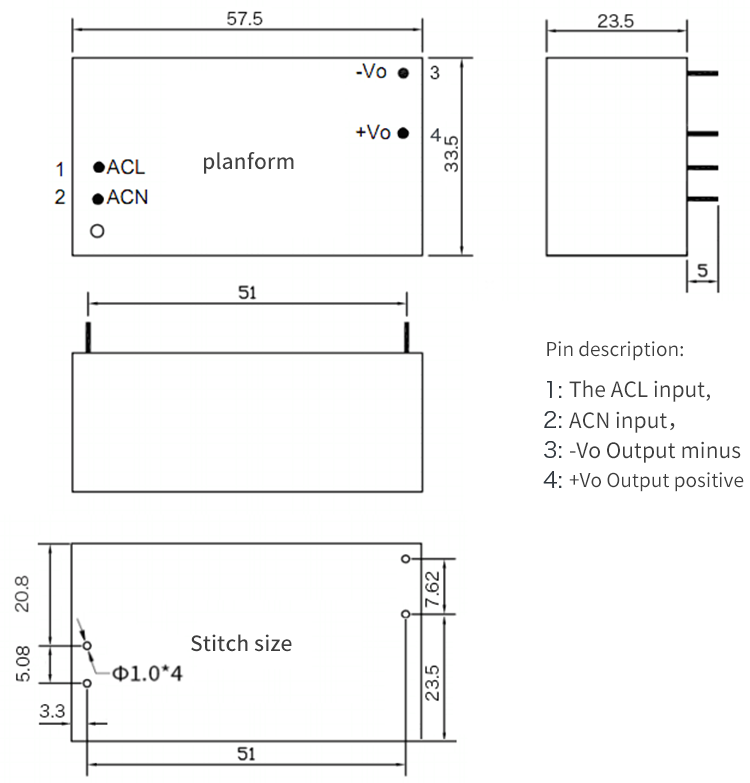

| *Product dimensions 57.5x33.5x23.5mm(±8%) | |||
Global universal input voltage 90~265VAC
Input and output isolation withstand voltage 3000VAC
Low power consumption, environmental protection, no-load loss < 0.1W
High efficiency, high power density
High reliability, long life design, continuous working time> 100,000 hours
Good output short circuit and over current protection and self-recovery
National standard pin, PCB board in-line installation
Potting and sealing with high-quality environmentally friendly waterproof and thermal conductive glue, dustproof, moistureproof, shockproof and flame retardant
Meet UL/CE/EMC and safety testing requirements
Can be used in medical, industrial control, electric power, instrumentation, communication, railway and other fields
Input part
Fuse/fuse: protection circuit when the module is abnormal (recommended: 2A/250Vac slow blow)
Varistor/ Varistor: Protection module during cumulative surge (recommended: 10D561K)

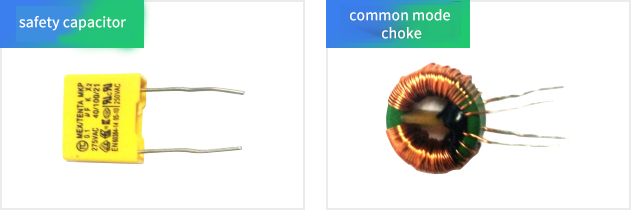

C1/Safety capacitor: filter, safety protection (EMC certification) (recommended: 0.1uF/275Vac)
L1/Common mode inductor: EMI filter (recommended: inductance 10-15mH, current 1-2A)
*Fuse and varistor are basic protection circuits (required)
*If certification is required, safety capacitors and common mode inductors cannot be omitted
Output section
C2/filter capacitor
Filtering, after adding this capacitor, the output ripple can be controlled within 30mV.
[Recommended] Aluminum electrolytic capacitors, with a capacitance value of 100-220uF, and withstand voltage derating greater than 75%.
RL/load
load
*Note: If the definition of each pin of the power module does not match the selection manual, the label on the physical label shall prevail.
Environmental conditions | |||

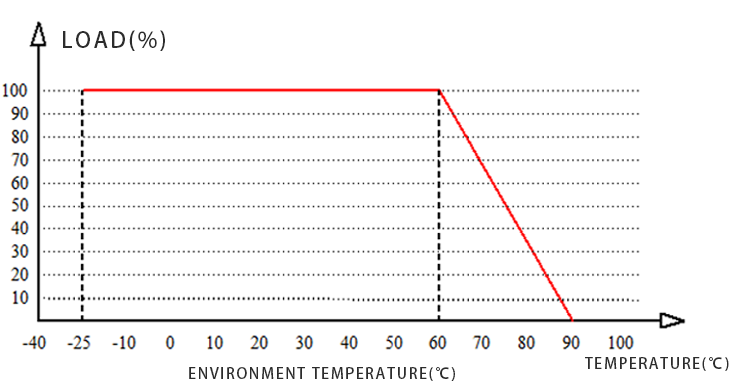

Operating temperature | -25 ~ +60 | °C | |
storage temperature | -40~+85 | °C | |
Relative humidity | 5-95 | % | |
Cooling method | Natural cooling | ||
Atmospheric pressure | 80-106 | Kpa | |
Altitude | ≤2000 | m | |
vibration | Vibration coefficient 10~500Hz,2G10min./1cycle,60min.each along X,Y,Z axes | Meet the requirements of secondary road transportation | |
Electrical characteristics | |||
Rated input voltage | 100~240 | Vac | |
Input voltage range | 85~264 | Vac | Or 120~350Vdc |
Maximum input current | ≤0.8 | A | |
Input surge current | ≤50 | A | typical |
Input slow start | ≤50 | mS | |
Long-term reliability | MTBF≥100,000 | h | |
External fuse recommendation | 2A/250Vac | Slow blow | |
Output features | |||
Output load | Load percentage 100%MAX | ||
Voltage regulation rate | ±0.2 | % | Tpy |
Load Regulation | ±0.5 | % | Tpy |
Output overcurrent protection | 150~200 | % | Maximum load |
Output short circuit protection | Sustainable and self-healing | Does not damage the whole machine | |
Ripple & noise | ≤150 | mVp-p | Ripple noise test: rated input voltage, output full load. Use a 20MHz bandwidth oscilloscope to test with 10uF and 0.1uF capacitors on the load side. |
