Netcom NB-IoT module N10

Apply Download Technical Support Purchase

product features

PRODUCT FEATURES

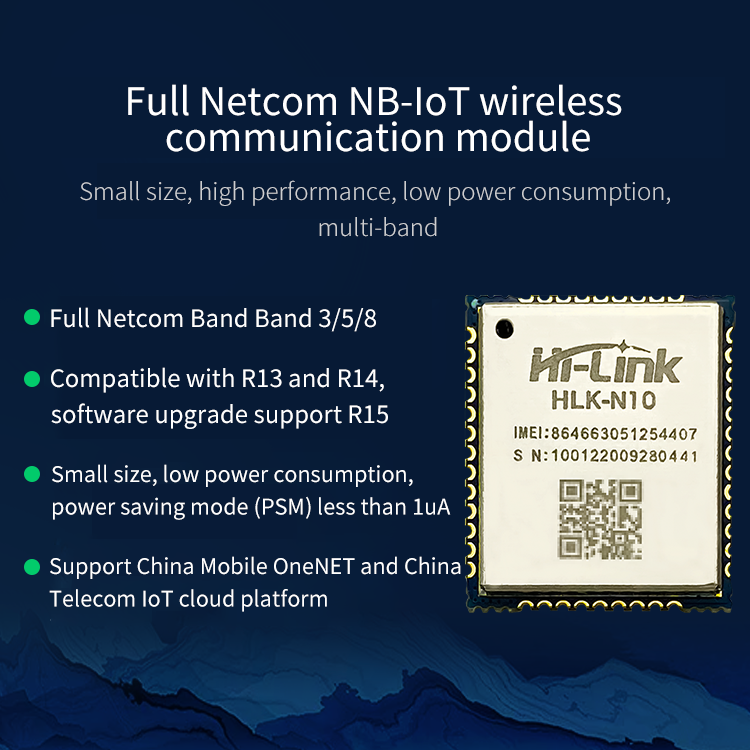

HLK-N10 is an industrial-grade high-performance, low-power NB-IoT wireless communication module that meets the technical specifications of the cellular Internet of Things general module. The protocol is fully compatible with R13 and R14, and the software upgrade supports R15. Provide a wealth of external interfaces and protocol stacks to facilitate customers to realize NB-IoT network data transmission.

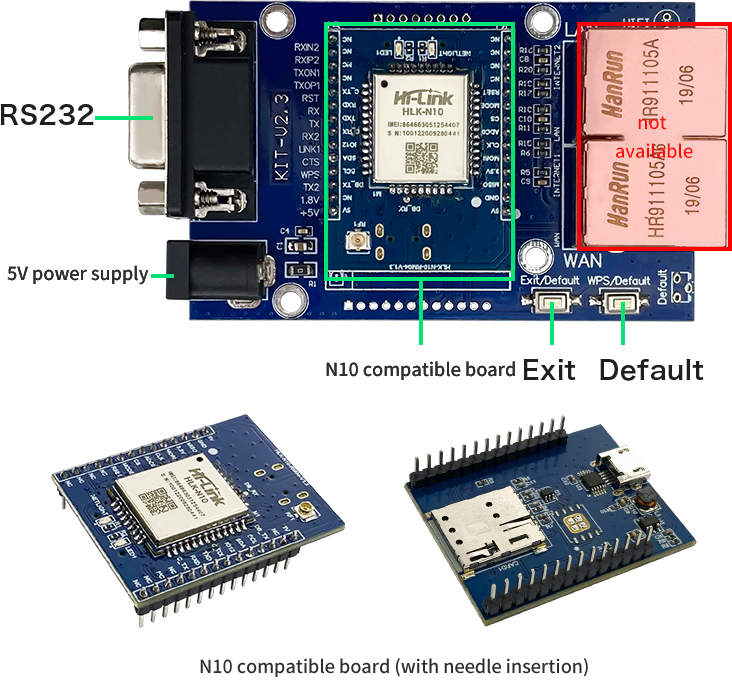

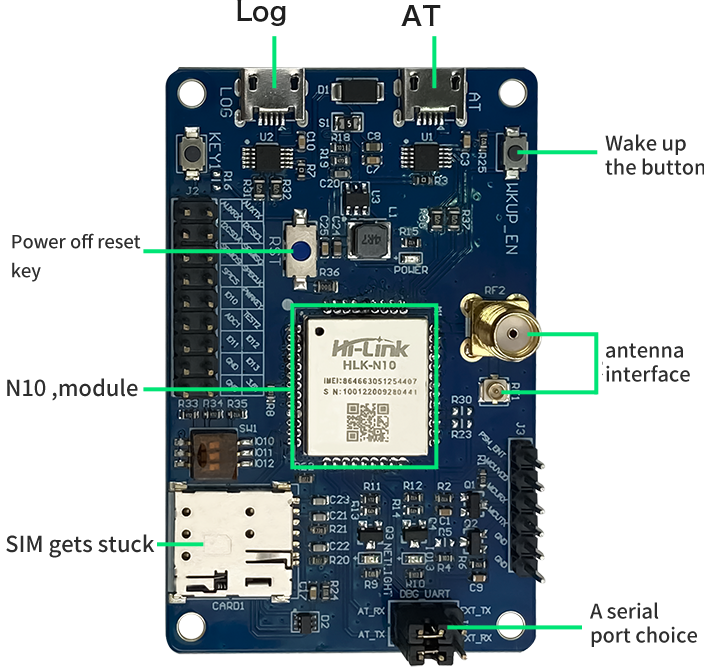

Product test suite

PRODUCT TEST KIT

product name

HLK-N10（NB-IoT Wireless communication module）

Operating Voltage

VBAT power supply 3.1V～4.2V/typical voltage 3.6V

Transmit power

23dBm±2dB

Sensitivity

-140dBm±2dB

Serial port description

Main serial port: used for AT command sending and data transmission
Serial port baud rate 4800bps-115200bps
Debugging serial port: only used for software debugging and downloading
Auxiliary serial port: used for software debugging and Low-level log acquisition

data transmission

single-Tone uplink 16.7kbps/downlink 25.5kbps

Firmware upgrade

UART/FOTA

Other parameters

physical dimension

15.8*17.7*2.0mm

USIM card interface

Support 1.8/3.0V USIM card

Environmental standards

Working temperature: -40-+85℃
Working humidity: 10%-90%RH (non-condensing)
Storage temperature: -40-80℃
Storage humidity: 5%-90%RH (non-condensing)

Power consumption

Tx ACTIVE：350mA@21dBm /78mA@0.8dBm Rx ACTIVE：25m STANDBY: ~200uDEEPSLEEP:-1uA
