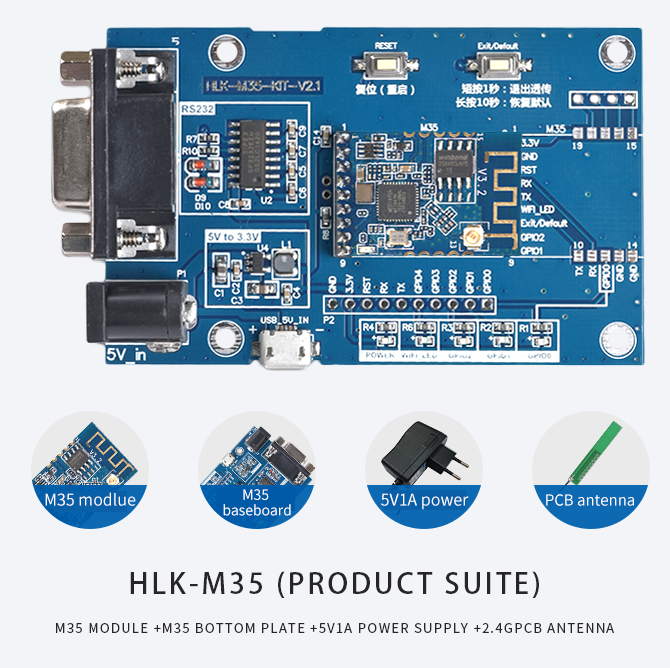

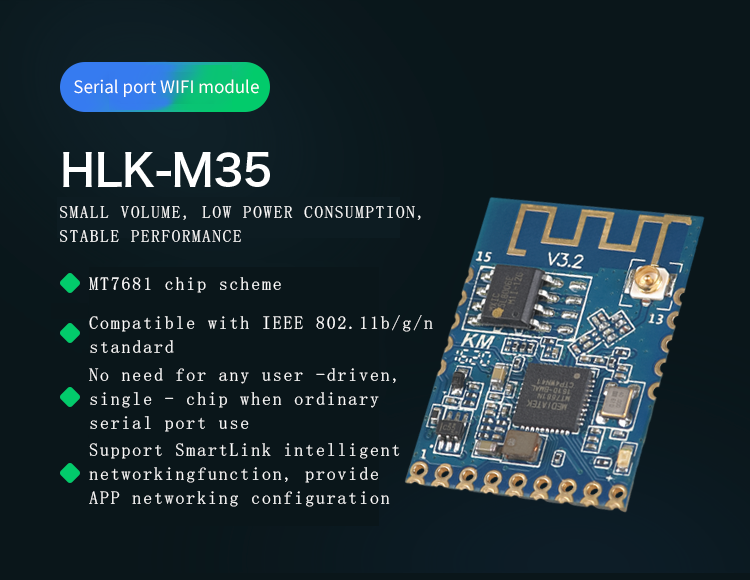

Model: HLK-M35 serial port WIFI module
Pin version
patch version
Small size serial port WiFi module（25×18×2.5mm）
Low power consumption, fast startup, convenient distribution network
Perfect support for 802.11b/g/ N protocol
Support WiFi encryption WEB/WPA1& AMP;2 the wpa2-psk/TKIP, etc
Without any driver, the single chip microcomputer is used as a common serial port
Support FOR AP hotspot, STA (WiFi node)
Support TCP/UDP Server and Client working mode
Supports DHCP DNS HTTP advanced application layer protocol
Support serial port AT instruction configuration
Support for searching protocols within the LAN to find modules
Anti-support SmartLink intelligent networking, APP control module
basic parameter | |
WLAN STANDARD | IEEE 802.11n、IEEE 802.11g、IEEE 802.11b |
Wireless communication Speed | 11n:Up to 150Mbps |
channel number | 1-14 |
frequency range | 2.4-2.4835G |
Output Power | 14-18 DBM |
Interface | gorge、GPIO、USB port |
antenna | |
Type of antenna | External antenna |
transmission distance | 100-300 meter（Different environment, different transmission distance） |
functional parameter | |
functional parameter | Wireless network card/wireless access point |
Wireless security | Wireless security features |
64/128/152 bit WEP encryption | |
Wpa-psk /WPA2-PSK, WPA/WPA2 security mechanism | |
Serial port to network | |
Maximum Transfer Rate | 115200bps |
TCP connection | Max Connections 4 |
UDP connections | Max Connections 4 |
The Other Parameter | |
Module Size | 25 × 18 × 2.5mm |
status indicator lamp | status indicator |
environmental standards | Operating temperature: -20-70℃ |
Working humidity: 10%-90%RH (non-condensation) | |
Storage temperature: -40-80℃ | |
Storage humidity: 5%-90%RH (non-condensation) | |
Access Connections | Frequency band bandwidth is optional: 20MHz, 40MHz automatic |
