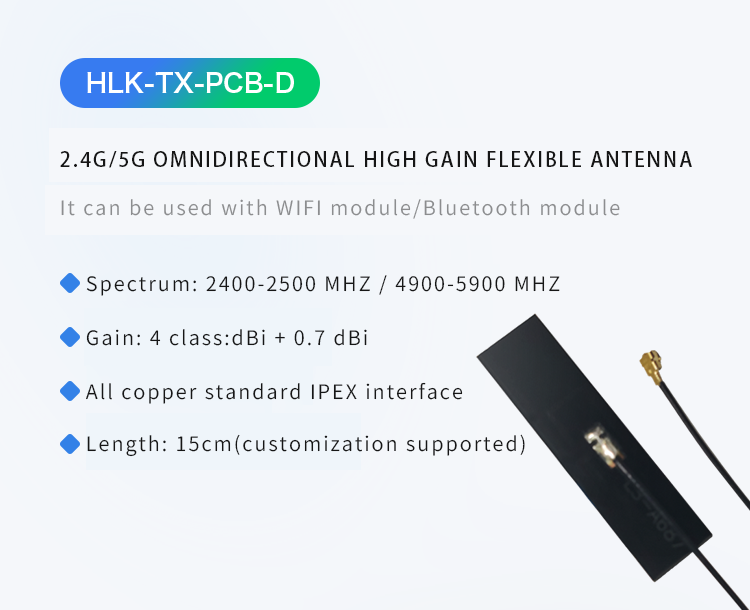

2.4G5.8G dual-band WiFi module antenna IPEX omnidirectional high gain built-in PCB flexible antenna with adhesive
Name2.4G/5G omnidirectional high gain antenna
frequency band2400-2500MHz 4900-5900MHz
Gain4dBi±0.7dBi
Standing Wave Ratio≤2.0
Impedance50Ω
Out-of-roundness±0.5dB
Antenna size45×10×0.5mm
Connector typeIPEX-1
WireRF1.13
Line lengthThe total length is about 15cm (50pcs can be customized)
Name | 2.4G/5G omnidirectional high-gain antenna |
frequency band | 2400-2500MHz 4900-5900MHz |
Gain | 4dBi±0.7dBi |
Standing Wave Ratio | ≤2.0 |
impedance | 50Ω |
out-of-roundness | ±0.5dB |
antenna size | 45×10×0.5mm |
Connector type | IPEX-1 |
wire | RF1.13 |
Line length | The total length is about 15cm (50pcs can be customized) |
