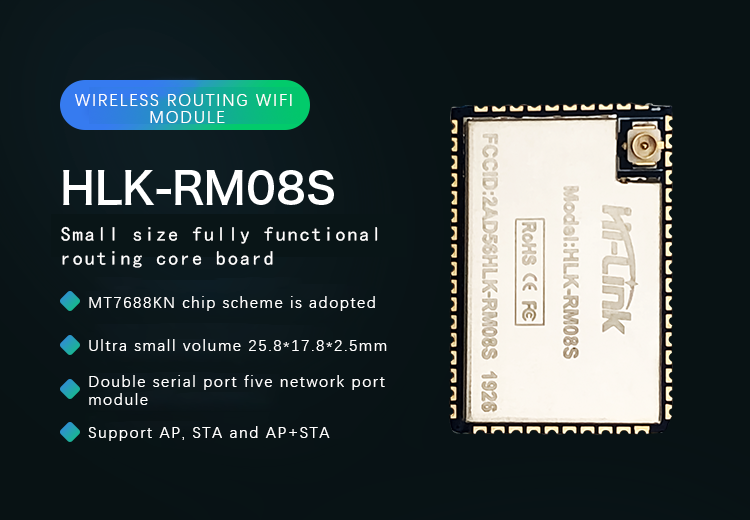

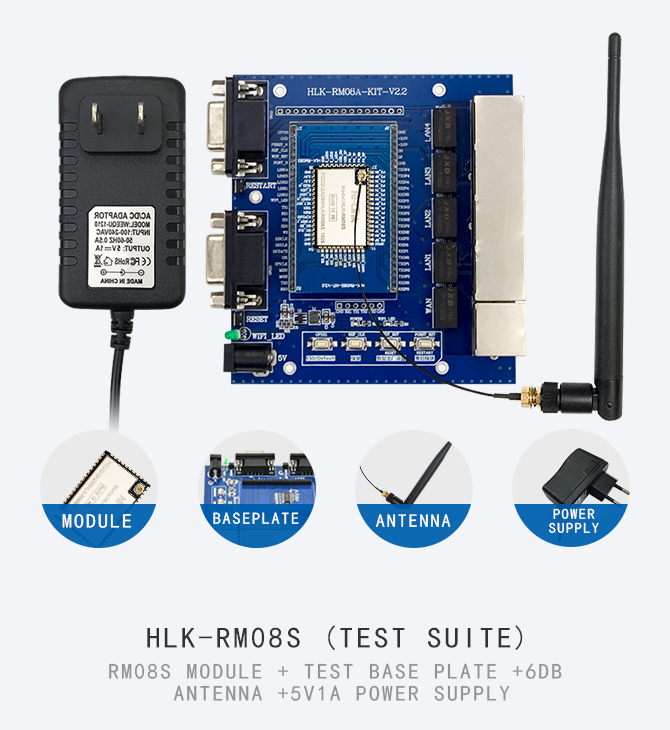

IoT smart serial port to WiFi wireless routing module RM08S development board MT7688KN chip solution
HLK-RM08S is an embedded WiFi module conforming to network standards based on a universal serial interface, with a built-in TCP/IP protocol stack, which can realize the mutual conversion between serial port, Ethernet, and wireless network (WIFI) interfaces.
Can quickly solve the user's serial device network transmission data problem, the traditional serial device does not need to change the configuration directly to the network.
Model HLK-RM08S
Size 25.8*17.8*2.8
Chip solution MT7688KN
Carrier frequency 2.4GHz
Transmit power 18dBm
Communication distance 100m
Net weight 4g
Network Standard | Wireless standard: IEEE 802.11n/g/ b |
Wireless transmission rate | 11n: 150Mbps(MAX) |
Number of channels | 1-11 span> |
frequency range | 2.4-2.4835G< /span> |
Transmitting power | 15-20dBm span> |
interface type | 5 Ethernet port/2 serial port/1USB (Host/slave)/GPIO |
antenna | |
antenna type | External antenna |
Function parameters | |
WiFi wireless mode | Wireless network card/wireless access point/wireless router |
WDS function | support WDS wireless bridging |
Wireless Security | wireless MAC address filtering/wireless security function switch |
64/128/152 bitWEPEncryption | |
WPA-PSK/WPA2-PSK、WPA/WPA2Safety mechanism | |
Configuration method | Remote WEB management |
Serial port to network | |
TCP connection | Maximum number of connections>20 |
UDP connection | Maximum number of connections>20 |
Serial port baud rate | 1200~2000000bps |
Other parameters | |
Status indicator | Status indication |
Environmental standards | Working temperature:-40-85℃ |
Working humidity:10%-90%RH(non-condensing) | |
Storage temperature:-40-85℃ | |
Storage humidity:5%-90%RH(non-condensing) | |
Other features | Band bandwidth is optional: 20/40MHz, automatic |
HLK-RM08S的四种模式串口配置指导说明书
HLK-RM08S用户手册V1.6.pdf
HLK-RM08KHLK-RM08S--AT指令说明书--V1.3.pdf
RM08S硬件说明书V1.2.1 .pdf
HLK-RM08S底板封装资料和PCB原理图.rar
HLK-08S-2.5底板硬件.zip
