5gwifi module wireless routing module chip RM28E dual frequency 1200M stable performance high speed wifi transmission
Product functions can be divided into: default mode, serial port to Ethernet, serial port to WiFi CLIENT and serial port to WiFi AP.

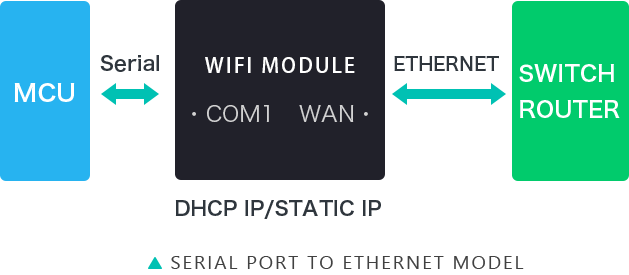

·In this mode, the WiFi and LAN functions are turned off, and the data of COM1 and the network data of WAN can be converted mutually through setting.
·The Ethernet can be configured as a dynamic IP address (DHCP) or a static IP address (STATIC).

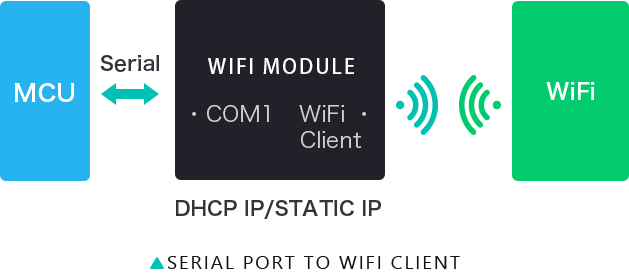

·In this mode, the WAN and LAN functions are turned off. Through settings, the data of COM1 and WiFi can be converted mutually.
·WiFi CLIENT can be configured as a dynamic IP address (DHCP) or a static IP address (STATIC).
·WiFi security supports all current encryption methods.

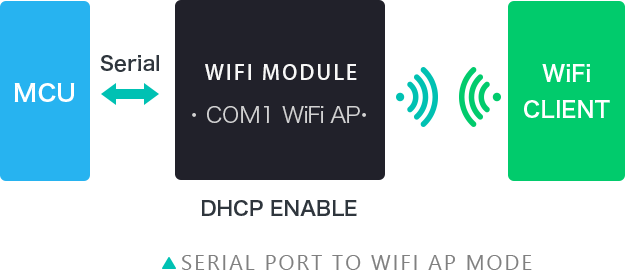

·In this mode (AP mode), the WAN and LAN functions are turned off, and the data of COM1 and WiFi can be converted mutually through setting.
·The WiFi device can connect to the product and become a device under the WiFi LAN.
·WiFi security supports all current encryption methods.
·In this mode (AP mode), WAN and LAN functions are available. Through settings, the data of COM1 and WiFi can be converted mutually.
·The WiFi device can connect to the product and become a device under the WiFi LAN. The WAN side defaults to dynamic IP address mode. LAN and WiFi are the same local area network, DHCP server is turned on by default
·WiFi security supports all current encryption methods.
The serial port/network data conversion of the product is divided into 4 modes: TCP Server, TCP Clinet, UDP Server, UDP Client.

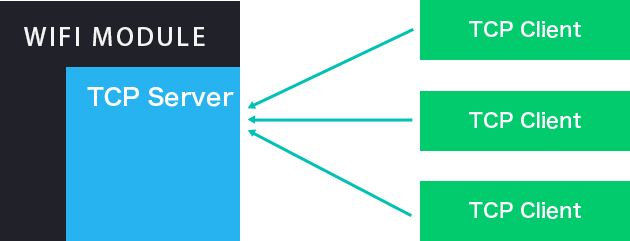

TCP Server
·In this mode, the module monitors the designated port and waits for the TCP Client to connect. After the connection, all TCP data is sent directly to the serial port, and the data from the serial port is sent to all TCP Clients.
TCP Client
·In this mode, the module connects to the specified domain name/IP and port. All data sent from the TCP Server end is sent directly to the serial port, and the data from the serial port is sent to the TCP Server end. When the module is used as a TCP Server, it supports up to 2 TCP Clients to connect to the TCP Server.
·The abnormal network will cause the product to reconnect actively. When TCP active reconnection is available, TCP Server actively disconnects, and the product will actively reconnect immediately, otherwise the module will not reconnect

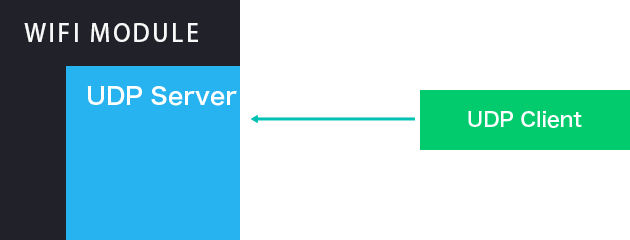

UDP Server
·In this mode, the module opens the local designated port. Once the data sent to this port is received, the module will send the data to the serial port and record the remote IP and port. The module will only record the remote information of the last connection. The data received by the serial port will be sent directly to the recorded remote IP and port.
UDP Client
·In this mode, the module directly sends serial port data to the specified ip and port. The data returned from the server will be sent to the serial port.
Network type | Wireless standard: IEEE 802.11a/ac/n/g/b |
Wireless transmission rate | 11a: up to 450Mbps |
Number of channels | 2.4g: 1-14 5.8g: 36-173 |
frequency range | 2.4-2.4835G 5.18-5.865G |
transmission power | 12-18dBm |
interface type | 5 Ethernet port/2 serial port/1USB port/GPIO |
antenna | |
antenna type | external antenna |
Function parameters | |
WiFi wireless mode | Wireless network card/wireless access point/wireless router |
WDS function | support WDS wireless bridging |
wireless security | wireless MAC address filtering/wireless security functionSwitch |
64/128/152 bitWEPEncryption | |
WPA-PSK/WPA2-PSK、WPA/WPA2safety mechanism | |
Configuration method | Remote WEB management |
Serial port to network | |
Maximum transfer rate | 500000bps |
TCP/UDP transmission | >20 |
Serial port baud rate | 1200~500000bps (support non-standard baud rate) |
Other parameters | |
Status indicator | Status indication |
Environmental standards | Working temperature:-20-80℃ |
Working humidity:10%-90%RH(no condensation) | |
Storage temperature:-40-80℃ | |
Storage humidity:5%-90%RH(non-condensing) | |
Other performance | Band bandwidth: 20/40/80MHz, automatic |
Core chip | MT7628DAN |
Memory/Flash Flash | 64MB/16MB (512MB/128MB can be customized) |
