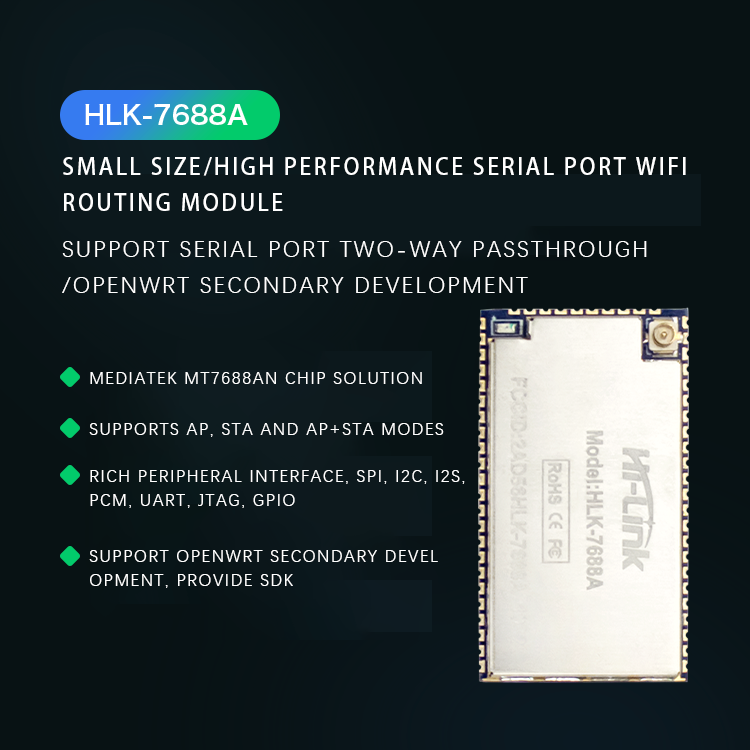

HLK-MT7688A Serial to WiFi wireless router module
  • HLK-MT7688A Serial to WiFi wireless router module
  • HLK-MT7688A Serial to WiFi wireless router module
  • HLK-MT7688A Serial to WiFi wireless router module
  • HLK-MT7688A Serial to WiFi wireless router module
  • HLK-MT7688A Serial to WiFi wireless router module

HLK-MT7688A Serial to WiFi wireless router module

Smart home/Internet of things control/industrial interconnection/smart gateway PageView : 3155

IoT smart serial port to WiFi wireless routing module 7688A OpenWrt secondary development MT7688

Apply Download Technical Support Purchase

product features

PRODUCT FEATURES

Super data processing capability, MCU frequency up to 580MHz

150M wireless transmission rate

Support 802.11b/g/n/v mode

20/40 channel bandwidth

Support AP, STA and AP+STA mixed mode

5 10/100M adaptive network ports, 1 USB2.0 host interface, with SPI/SD-XC/eMMC

Rich peripheral interfaces, SPI, I2C, I2S, PCM, UART, JTAG, GPIO

Support multiple encryption methods WEP64/128, TKIP, AES,  WPA, WPA2, WAPI

Support QoS, WMM, WMM-PS

Support Linux2.6.36 SDK, OpenWrt3.10

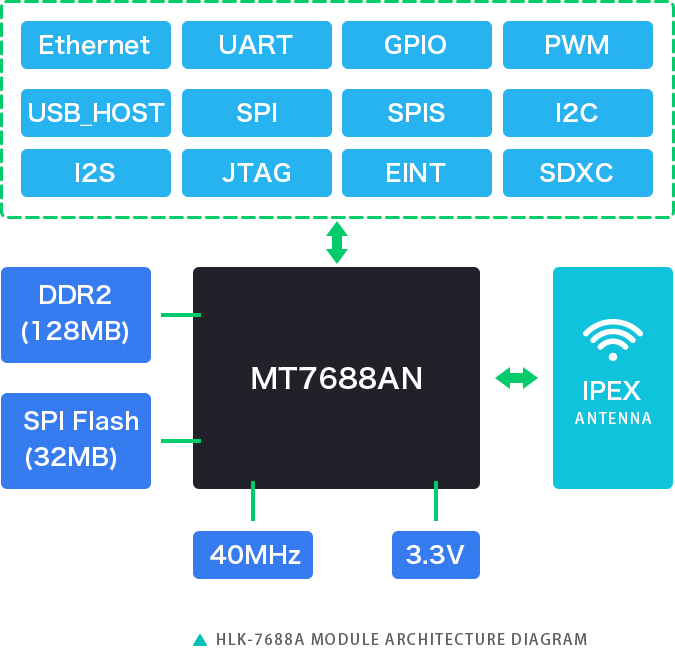

Product Structure

PRODUCT STRUCTURE




Basic parameters


Main chip


MT7688AN


Kernel


MIPS24KEc


Main frequency


580MHz


RAM


DDR2 128MB (customizable)


Flash


32MB (customizable)


Interface Type


UART, 12C, PWM, GPIO/PWM, ADC, SPI, I2S


Antenna


Antenna type


external antenna


Function parameters


WiFi working mode


STA/AP/STA+AP


WDS function

Support WDS wireless bridging


Wireless security


64/128/152 bit WEP encryption WPA-PSK/WPA2-PSK, WPA/WPA2 security mechanism


Network management


Remote WEB management

Configuration file import and export

WEB software upgrade

Other parameters


Operating Voltage


Standard DC3.3V±0.2V


No-load running current


170±50mA


Environmental standards


Working temperature: -40~80℃

Working humidity: 10%~90%RH (non-condensing)

Storage temperature: -40~40℃

Storage humidity: 5%~90%RH (non-condensing)

size


32.8×18×2.8mm
