9V regulated switching power supply module 10M09 220V to 9V10W small size high performance step-down isolated power supply
AC/DC-10W power module selection
MULTIPLE SPECIFICATIONS AVAILABLE
Wide voltage 85-264VAC/70-350VDC 10W power module, regulated single output
| MODEL | POWER | VOLTAGE | ELECTRICITY |
| HLK-10M03 | 10W | 3.3V | 3030mA |
| HLK-10M05 | 10W | 5V | 2000mA |
| HLK-10M09 | 10W | 9V | 1111mA |
| HLK-10M012 | 10W | 12V | 833mA |
| HLK-10M015 | 10W | 15V | 667mA |
| HLK-10M024 | 10W | 24V | 416mA |
| *Same series appearance and pin size | |||

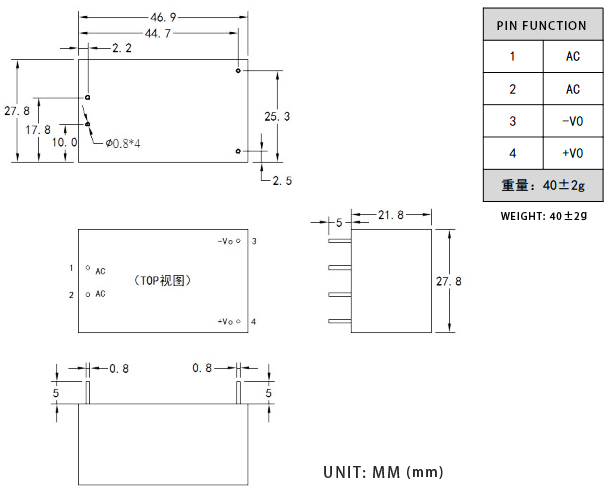

| *Module size 46.9x27.8x21.8mm (±0.5mm) | |||
Wide range input: 85-264VAC/70-350VDC
Input and output isolation withstand voltage 3000VAC
No-load power consumption ≤0.1W
Operating temperature range: -25°C~+60°C
Fully enclosed plastic housing, in line with UL94V-0 level
Good output short circuit and over current protection and self-recovery
Potting and sealing with high-quality environmentally friendly waterproof and thermal conductive glue, dustproof, moistureproof, shockproof and flame retardant
Meet UL/CE/EMC and safety testing requirements
Can be used in medical, industrial control, electric power, instrumentation, communication, railway and other fields
Input part
Fuse/fuse: protection circuit when the module is abnormal (recommended: 0.5A/250Vac slow blow)
Varistor/ Varistor: Protection module during cumulative surge (recommended: 10D561K)
C1/Safety capacitor: filter, safety protection (EMC certification) (recommended: 0.1uF/275Vac)
L1/Common mode inductor: EMI filtering (recommended: inductance 10-15mH, current 70-500mA)
*Fuse and varistor are basic protection circuits (required)
*If certification is required, safety capacitors and common mode inductors cannot be omitted
Output section
C2/filter capacitor
Filtering, after adding this capacitor, the output ripple can be controlled within 30mV.
[Recommended] Aluminum electrolytic capacitors, with a capacitance value of 100-220uF, and withstand voltage derating greater than 75%.
RL/load
load
*The C2 filter capacitor can reduce the output ripple from the original 50mV to within 30mV.
Product design meets UL/CE and safety certification requirements.
(UL/CE certification must be completed by the customer)
Safety and electromagnetic compatibility
The input end design adopts UL certification 0.5A insurance
The PCB board is made of double-sided copper clad laminate, and the fire rating of the material is 94-V0
Safety standards comply with UL1012, EN60950, UL60950
Insulation voltage I/P-O/P: 2500Vac
Insulation resistance I/P-O/P>100M Ohms/500Vdc 25℃ 70% RH
Conduction and radiation comply with EN55011, EN55022 (CISPR22)
Safety standards comply with UL1012, EN60950, UL60950
Electrostatic discharge IEC/EN 61000-4-2 level 4 8kV/15kV
Radio frequency radiation immunity IEC/EN 61000-4-3 See application note for details
Temperature rise safety design
The maximum temperature rise of the inner surface of the power supply capacitor, main converter, etc. does not exceed 90℃ at room temperature;
The maximum temperature rise of the shell surface shall not exceed 60℃.
Size error:
1. Length, width, height and lead pitch error ±8%
2. Lead length error ±1mm
3. Lead diameter error -0.2mm
Environmental conditions | |||
Operating temperature | -25 ~ +60 | °C | |
storage temperature | -40~+80 | °C | |
Relative humidity | 5-95 | % | |
Cooling method | Natural cooling | - | |
Atmospheric pressure | 80-106 | Kpa | |
Altitude | ≤2000 | m | |
vibration | Vibration coefficient 10~500Hz,2G10min./1cycle,60min.each along X,Y,Z axes | - | Meet the requirements of secondary road transportation |
Electrical characteristics (normal temperature test) | |||
Rated input voltage | 90~245 | Vac | |
Input voltage range | 85~264 | Vac | Or 70~350Vdc |
Maximum input voltage | ≤270 | VAC | |
Input Current | ≤0.2 | A | |
Inrush current | ≤10 | A | |
Input slow start | ≤50 | mS | |
External fuse recommendation | 1A/250Vac | - | Slow blow |
Input voltage efficiency | ≥69/≥70 | % | 110/220VAC |
Hot plug | Not supported | - | |
Output features | |||
Voltage regulation rate | ±0.2 | % | |
Load Regulation | ±0.5 | % | |
Ripple & noise | ≤70 | mVp-p | Tpy: 50 |
Switch machine overshoot range | 5mS(115VAC)/60mS | - | 220VAC |
Output short circuit protection | ≤5 | % | V0 |
