ACDC isolated regulated power supply module 10M12 220V to 12V830mA10W low ripple noise CE certification
AC/DC-10W power module selection
MULTIPLE SPECIFICATIONS AVAILABLE
Wide voltage 85-264VAC/70-350VDC 10W power module, regulated single output
| MODEL | POWER | VOLTAGE | ELECTRICITY |
| HLK-10M03 | 10W | 3.3V | 3030mA |
| HLK-10M05 | 10W | 5V | 2000mA |
| HLK-10M09 | 10W | 9V | 1111mA |
| HLK-10M012 | 10W | 12V | 833mA |
| HLK-10M015 | 10W | 15V | 667mA |
| HLK-10M024 | 10W | 24V | 416mA |
| *Same series appearance and pin size | |||
| *Module size 46.9x27.8x21.8mm (±0.5mm) | |||

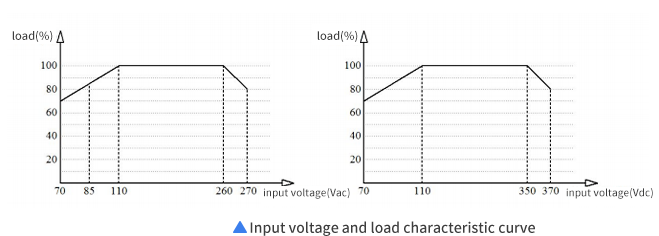

Wide range input: 85-264VAC/70-350VDC
Input and output isolation withstand voltage 3000VAC
No-load power consumption ≤0.1W
Operating temperature range: -25°C~+60°C
Fully enclosed plastic housing, in line with UL94V-0 level
Good output short circuit and over current protection and self-recovery
Potting and sealing with high-quality environmentally friendly waterproof and thermal conductive glue, dustproof, moistureproof, shockproof and flame retardant
Meet UL/CE/EMC and safety testing requirements
Can be used in medical, industrial control, electric power, instrumentation, communication, railway and other fields
Input part
Fuse/fuse: protection circuit when the module is abnormal (recommended: 0.5A/250Vac slow blow)
Varistor/ Varistor: Protection module during cumulative surge (recommended: 10D561K)
C1/Safety capacitor: filter, safety protection (EMC certification) (recommended: 0.1uF/275Vac)
L1/Common mode inductor: EMI filtering (recommended: inductance 10-15mH, current 70-500mA)
*Fuse and varistor are basic protection circuits (required)
*If certification is required, safety capacitors and common mode inductors cannot be omitted
Output section
C2/filter capacitor
Filtering, after adding this capacitor, the output ripple can be controlled within 30mV.
[Recommended] Aluminum electrolytic capacitors, with a capacitance value of 100-220uF, and withstand voltage derating greater than 75%.
RL/load
load
*The C2 filter capacitor can reduce the output ripple from the original 50mV to within 30mV.
Product design meets UL/CE and safety certification requirements.
(UL/CE certification must be completed by the customer)
Safety and electromagnetic compatibility
The input end design adopts UL certification 0.5A insurance
The PCB board is made of double-sided copper clad laminate, and the fire rating of the material is 94-V0
Safety standards comply with UL1012, EN60950, UL60950
Insulation voltage I/P-O/P: 2500Vac
Insulation resistance I/P-O/P>100M Ohms/500Vdc 25℃ 70% RH
Conduction and radiation comply with EN55011, EN55022 (CISPR22)
Safety standards comply with UL1012, EN60950, UL60950
Electrostatic discharge IEC/EN 61000-4-2 level 4 8kV/15kV
Radio frequency radiation immunity IEC/EN 61000-4-3 See application note for details
Temperature rise safety design
The maximum temperature rise of the inner surface of the power supply capacitor, main converter, etc. does not exceed 90℃ at room temperature;
The maximum temperature rise of the shell surface shall not exceed 60℃.

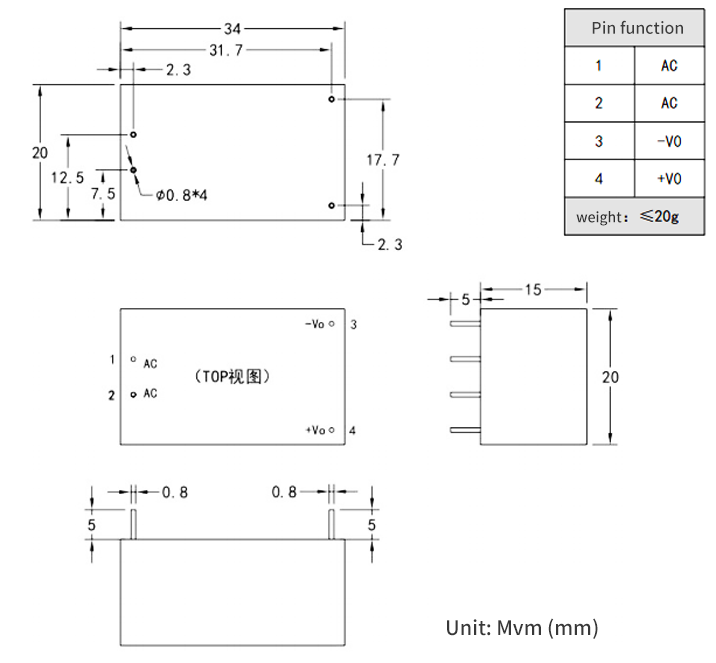

Size error:
1. Length, width, height and lead pitch error ±8%
2. Lead length error ±1mm
3. Lead diameter error -0.2mm
Environmental conditions | |||
Operating temperature | -25 ~ +60 | °C | |
storage temperature | -40~+80 | °C | |
Relative humidity | 5-95 | % | |
Cooling method | Natural cooling | ||
Atmospheric pressure | 80-106 | Kpa | |
Altitude | ≤2000 | m | |
vibration | Vibration coefficient 10~500Hz,2G10min./1cycle,60min.each along X,Y,Z axes | Meet the requirements of secondary road transportation | |
Electrical characteristics | |||
Rated input voltage | 90~245 | Vac | |
Input voltage range | 85~264 | Vac | Or 70~350Vdc |
Maximum input current | ≤0.2 | A | |
Input surge current | ≤10 | A | |
Maximum input voltage | ≤270 | Vac | |
Input slow start | ≤50 | mS | |
Input low voltage efficiency | Vin=110Vac, input full load≥69 | % | |
Input high voltage efficiency | Vin=220Vac, input full load≥70 | % | |
Long-term reliability | MTBF≥100,000 | h | |
External fuse recommendation | 0.5A/250Vac | Slow blow | |
Output features | |||
No-load rated output voltage | 5.0±0.1 | Vdc | |
Full load rated output voltage | 5.0±0.2 | Vdc | |
Maximum output current in short time | ≥1200 | mA | |
Long time maximum output current | ≥1000 | mA | |
Voltage regulation rate | ±0.2 | % | |
Load Regulation | ±0.5 | % | |
Output ripple and noise | ≤50 | mV | |
Switch machine overshoot range | (Rated input voltage, input plus 10% load) ≤5 | %Vo | |
Output overcurrent protection | 150-200% of output maximum load | A | |
Output short circuit protection | Direct short-circuit during normal input, and automatically resume normal operation after the short-circuit is removed | Do not damage the whole machine | |
