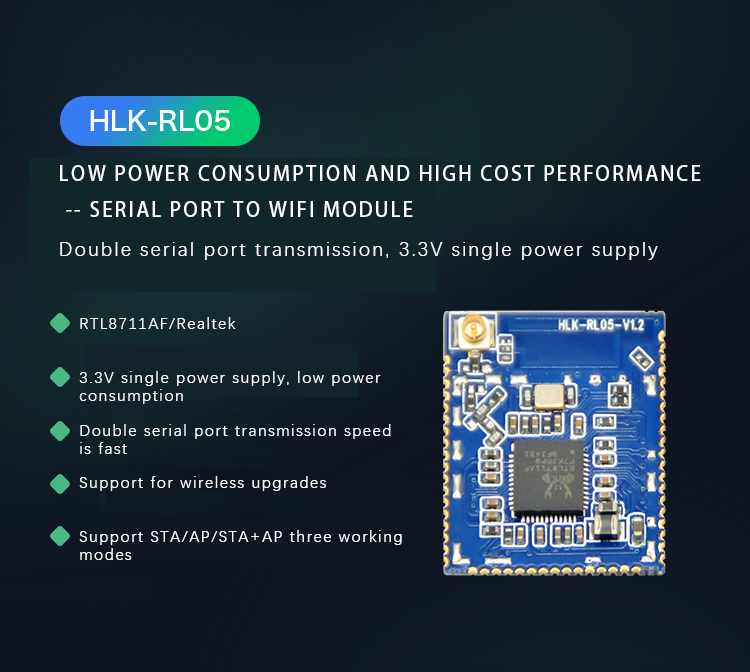

Dual serial port transparent transmission, low power consumption and high cost performance
HLK-RL05 WiFi module is integrated UART/GPIO/PWM data communication interface, built-in TCP/IP protocol stack, ultra-low energy consumption, suitable for battery-powered applications
Network standard | Wireless standard: IEEE 802.11n/g/b |
Wireless transmission rate | 11n: up to 150Mbps |
Number of channels | 1-14 |
Frequency Range | 2.4-2.4835G |
Transmit power | 12-14DBM |
Interface Type | UART/IIC/PWM/GPIO/SPI |
Antenna | |
Antenna type | External antenna |
Function parameters | |
Wireless network type | STA/AP/STA+AP |
Security Mechanism | WEP/WPA-PSK/WPA2-PSK |
Encryption type | WEP64/WEP128/TKIP/AES |
Firmware upgrade | Wireless upgrade |
Network protocol | IPv4, TCP/UDP |
User configuration | AT+ instruction set, airkiss intelligent configuration |
Serial port to network | |
Transmission rate | 110-921600bps |
TCP client | 1 piece |
Other parameters | |
GPIO drive capability | Max:15ma |
Operating Voltage | 3.3V |
Working current | Keep sending next=> Average value: ~60mA, peak value: 60mA In normal mode=> Average: ~30mA, Peak: 60mA |
Temperature/Environment | Working temperature: -20 -70℃ (recommended) Storage environment: temperature <40℃, relative humidity<90%R.H |
