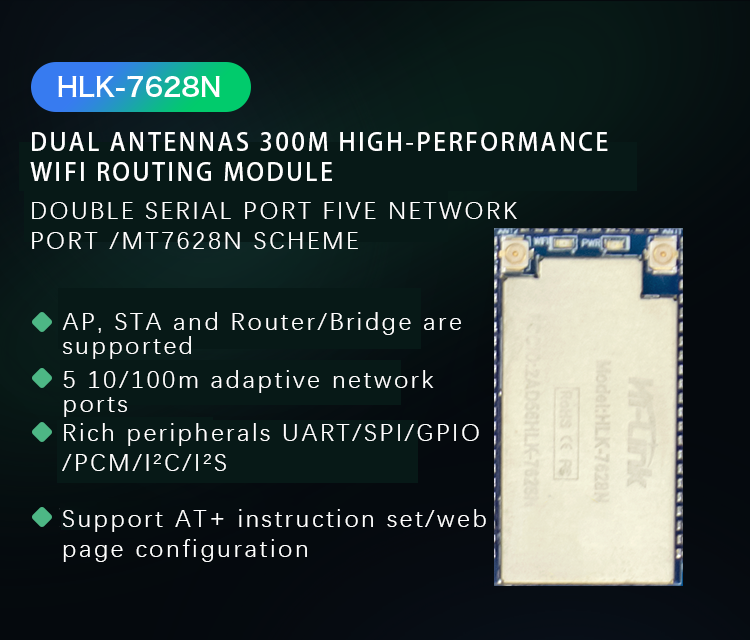

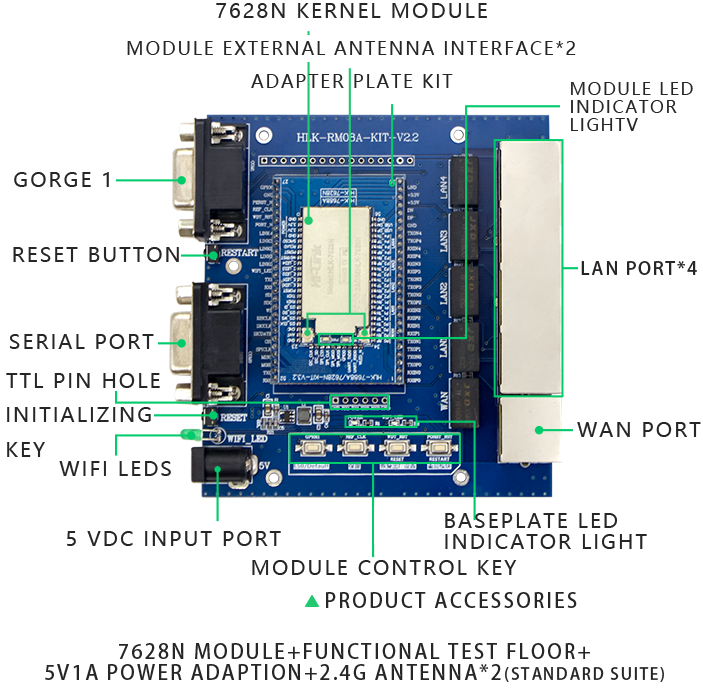

Serial port to WiFi module 7628N wireless module MT7628 chip serial port transparent transmission OpenWrt development board
Multiple memory/Flash combinations
MEMORY/FLASH COMBINATIONS
In order to distinguish the difference between memory and flash memory, modules are printed in the following categories :(same size and function)
| MODEL | MEMORY | FLASH |
| HLK-7628NS | 64MB | 16MB |
| HLK-7628N(默认) | 128MB | 32MB |
| HLK-7628NF | 256MB | 32MB |
| HLK-7628NL | 256MB | 64MB |

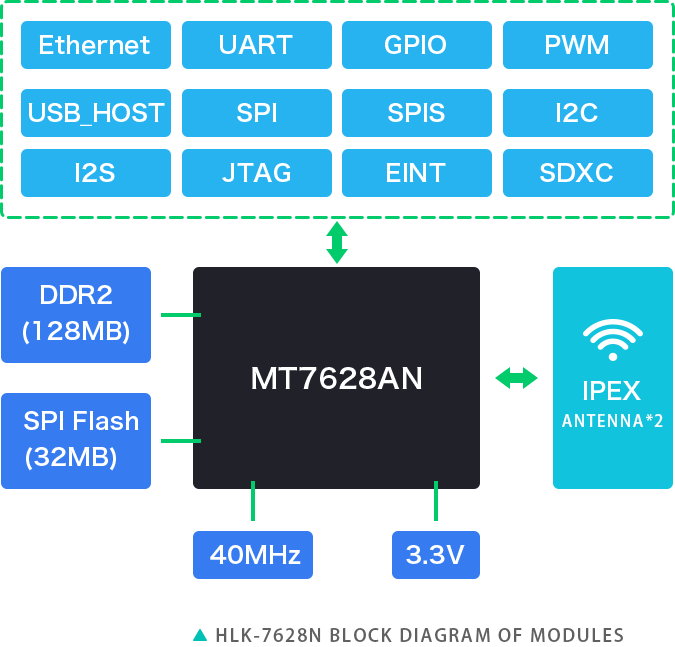

Interface Description
| Interface Type | Module specific interface | Factory firmware support interface |
| WiFi standard | IEEE802.11b/g/n | 1 WAn&4 LAN |
| UART | 3 way | 2 channels can establish TCP connection |
| SDIO | 1 way | not support |
| SPI | 1 way | not support |
| I2C | 1 way | not support |
| I2S | 1 way | not support |
| PWM | 1 way | not support |
| GPIO | 8 channels or more | Defined function |
Product functions can be divided into: default mode, serial port to Ethernet, serial port to WiFi CLIENT and serial port to WiFi AP.

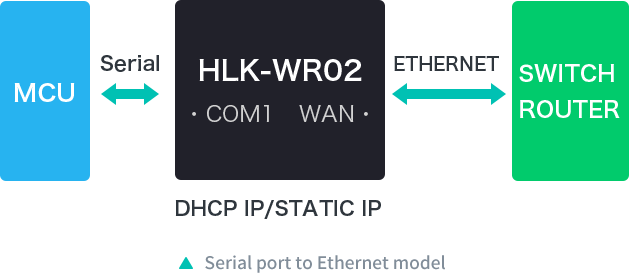

·In this mode, the WiFi and LAN functions are turned off, and the data of COM1 and the network data of WAN can be converted mutually through setting.
·The Ethernet can be configured as a dynamic IP address (DHCP) or a static IP address (STATIC).

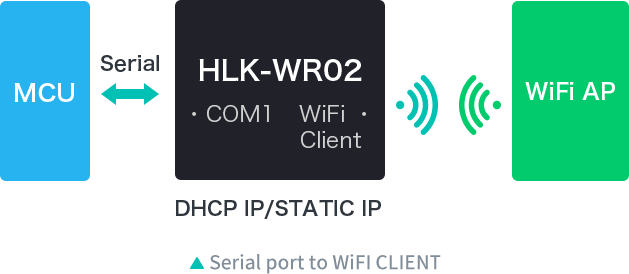

·In this mode, the WAN and LAN functions are turned off. Through settings, the data of COM1 and WiFi can be converted mutually.
·WiFi CLIENT can be configured as a dynamic IP address (DHCP) or a static IP address (STATIC).
·WiFi security supports all current encryption methods.

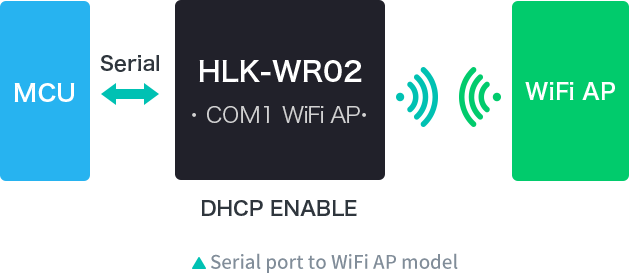

·In this mode (AP mode), the WAN and LAN functions are turned off, and the data of COM1 and WiFi can be converted mutually through setting.
·The WiFi device can connect to the product and become a device under the WiFi LAN.
·WiFi security supports all current encryption methods.

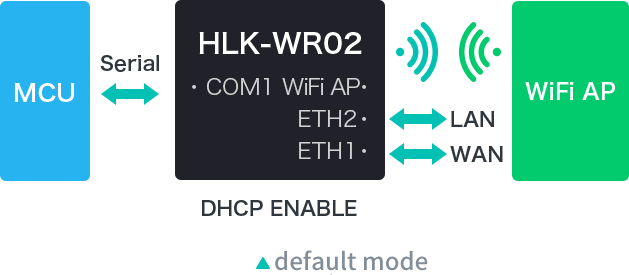

·In this mode (AP mode), WAN and LAN functions are available. Through settings, the data of COM1 and WiFi can be converted mutually.
·The WiFi device can connect to the product and become a device under the WiFi LAN. The WAN side defaults to dynamic IP address mode. LAN and WiFi are the same local area network, DHCP server is turned on by default
·WiFi security supports all current encryption methods.
The serial port/network data conversion of the product is divided into 4 modes: TCP Server, TCP Clinet, UDP Server, UDP Client.

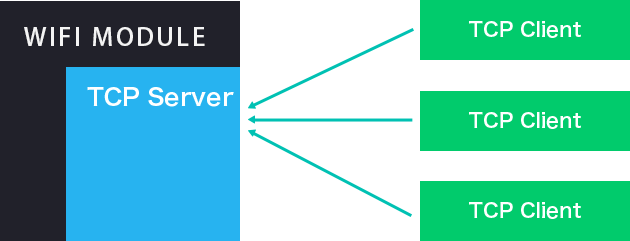

TCP Server
·In this mode, the module monitors the designated port and waits for the TCP Client to connect. After the connection, all TCP data is sent directly to the serial port, and the data from the serial port is sent to all TCP Clients.
TCP Client
·The abnormal network will cause the product to reconnect actively. When TCP active reconnection is available, TCP Server actively disconnects, and the product will actively reconnect immediately, otherwise the module will not reconnect
UDP Server
·In this mode, the module opens the local designated port. Once the data sent to this port is received, the module will send the data to the serial port and record the remote IP and port. The module will only record the remote information of the last connection. The data received by the serial port will be sent directly to the recorded remote IP and port.

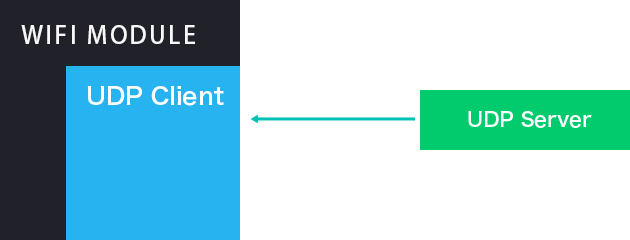

UDP Client
·In this mode, the module directly sends serial port data to the specified ip and port. The data returned from the server will be sent to the serial port.
Network standard | Wireless standard: IEEE 802.11n/gb |
Wired standards: IEEE 802.3, IEEE 802,3u | |
Wireless transmission rate | 11n: up to 150Mbps |
Number of channels | 1-14 |
Frequency Range | 2.412-2.4835G |
Transmit power | 15-20DBM |
interface | Ethernet/UART/GPIO/SDIO/SPI/PWM/... |
Antenna | |
Antenna type | External antenna (2.4G antenna*2) |
Function parameters | |
WIFI working mode | Router/AP/STA/Ap client/Bridge |
Wireless security | Wireless MAC address filtering |
Wireless security function switch | |
64/128/152 bit WEP encryption | |
WPA-PSK/WPA2-PSK, WPA/WPA2 security mechanism | |
Configuration method | AT command set/web configuration |
Serial port to network | |
Maximum transmission speed | 500000bps |
TCP connection | Maximum number of connections> 20 |
UDP connection | Maximum number of connections> 20 |
Serial port baud rate | 1200~500000bps (support non-standard baud rate) |
Other parameters | |
Status Indicator | Status indication |
Environmental standards | Working temperature: -20-80℃ |
Working humidity: 10%-90%RH (non-condensing) | |
Storage temperature: -40-80℃ | |
Storage humidity: 5%-90%RH (non-condensing) | |
Other properties | Band bandwidth is optional: 20MHz, 40MHz, 80MHz, automatic |
Core chip | MT7628N |
| Supply current requirements | ≥800mA |
