WiFi relay wireless network control switch SW16 secondary development / provide MCU APP source code SDK

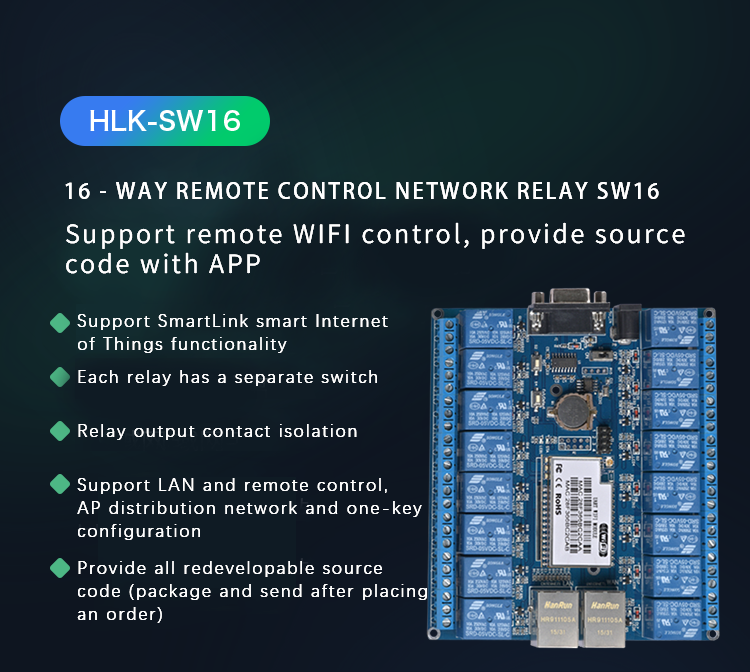

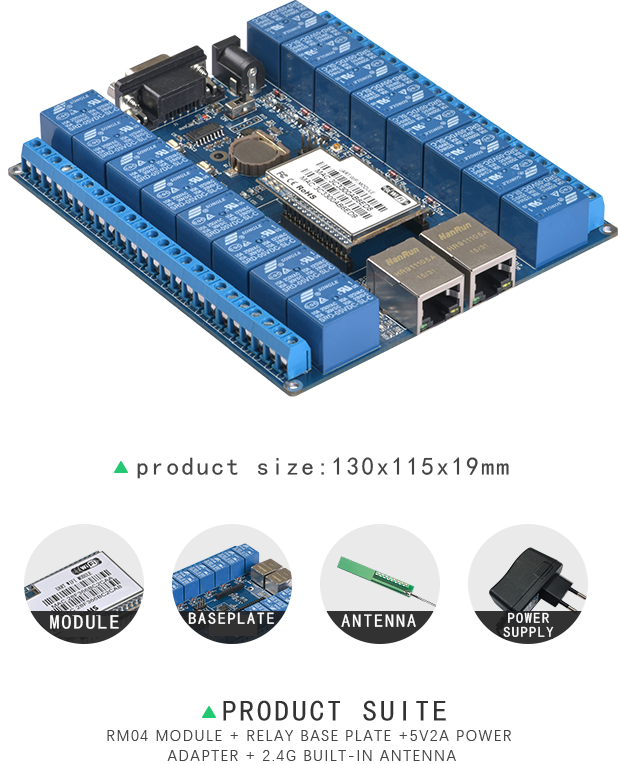

HLK-SW16 is an industrial-grade 16-channel network relay, which can help users to remotely control the device on/off. The core board of the product is the embedded serial port to WiFi routing module RM04 developed by our company.

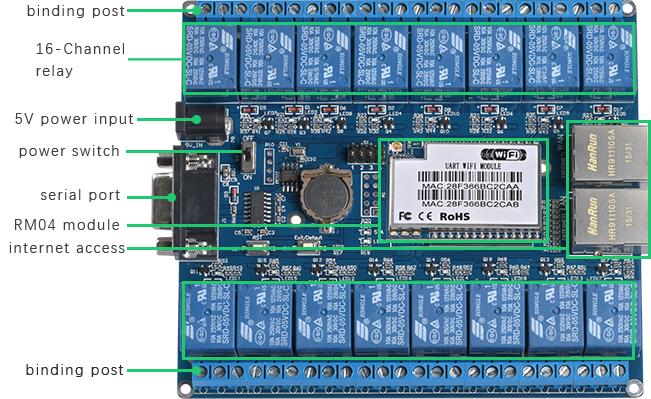

Relay hardware parameters
Basic parameters
input power5V
input current2A
relay maximum input voltage220V(MAX)
relay maximum input current10A(MAX)
input and output16 output
网络标准 | 无线标准：IEEE 802.11n/g/b |
有线标准：IEEE 802.3、IEEE 802.3u | |
无线传输速率 | 11n:150Mbps(MAX) |
信道数 | 1-14 |
频率范围 | 2.4-2.4835G |
发射功率 | 12-15DBM |
接口 | 2个以太网口/2个串口/1个USB口(host/slave)/GPIO |
天线 | |
天线类型 | 外接天线/板载天线 |
功能参数 | |
WIFI工作模式 | STA/AP/STA+AP |
WDS功能 | 支持WDS无线桥接 |
| 无线安全 | 64/128/152位WEP加密 |
WPA-PSK/WPA2-PSK、WPA/WPA2安全机制 | |
网络管理 | 远程Web管理 |
配置文件导入与导出 | |
WEB软件升级 | |
其它参数 | |
环境标准 | 工作温度：-20-80℃ |
工作湿度：10%-90%RH（不凝结） | |
存储温度：-40-40℃ | |
存储湿度：5%-90%RH（不凝结） | |
其它性能 | 频段带宽可选：20MHz、40MHz，自动 |
