WiFi relay remote control equipment SW02 secondary development/free SCM APP source code SDK
HLK-SW2It is a professional remote control terminal newly launched by Hailingke Store, which can realize TCP crossing gateway and establish careful connection with remote devices. It can realize direct connection between network client and setting on the basis of no modification of the original communication protocol, save development cycle and improve user experience. Compared with the traditional dynamic domain name and router port mapping method, it has incomparable advantages and eliminates the need for frequent operation such as applying for dynamic domain name and port mapping on the router, so that the device can achieve the effect of plug and play。
operating characteristic of electric apparatus
input power：5V~12V
incoming current：1A
Maximum input voltage of relay：220V
Maximum input current of relay：10A
I/O: 2 outputs 2 inputs
Default IP：192.168.16.254
The default port：8080

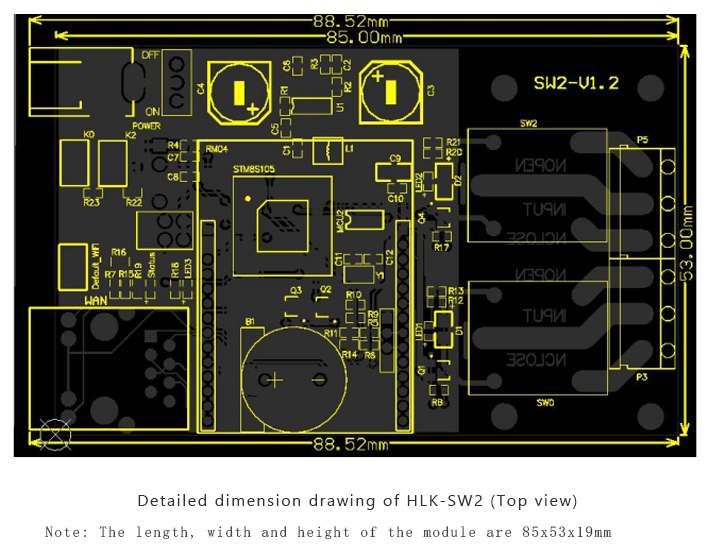

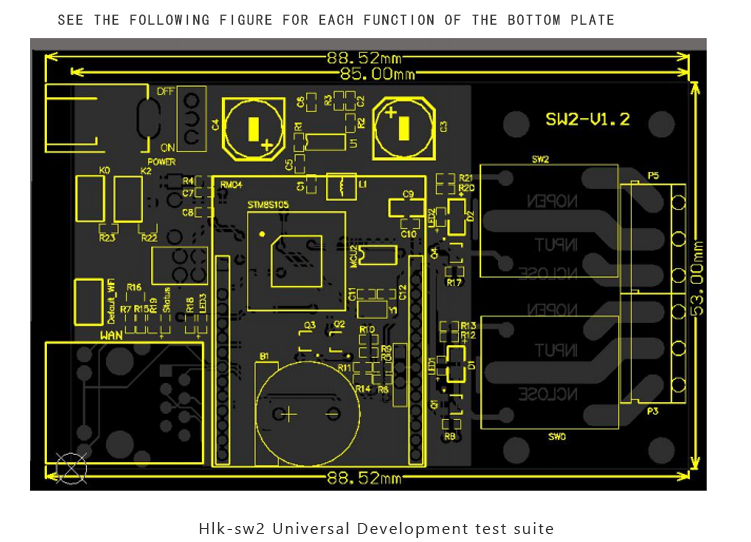

| function | name | bit number | describe |
| port | DC power supply | Power | Dc input, voltage range：5~12V |
| status lamp | LED3 | SCM running status light, flash once a second | |
| network interface | WAN | ；The LAN port connected to the router | |
| terminal | P1-P8 | 16 channel 220V, 10A relay | |
| LED | state | Status |
Indicates the connection status between the client and the server： Bright: Client and server are connected Out: Client is not connected to server Flicker: Data communication between client and server |
| WIFI | WIFI indicator light, when WIFI is working normally, blink faster | ||
| Start flashing, wifi on when there's data transfer | |||
| LED1~2 | LED1~2 |
Indicates the working state of the relay On: relay working Off: Relay disconnects | |
| button | RST_MCU | RST | Single chip reset |
| Default_WIFI | Default | ong press（More than 6 seconds）：Load Fail-Safe Defaults | |
| button K0 | K0 | Control relay SW0 | |
| button K2 | K2 | pilot relay SW2 |
Network standard | Wireless standard：IEEE 802.11n、IEEE 802.11g、IEEE 802.11b |
Wired standard：IEEE 802.3、IEEE 802.3u | |
Wireless transmission rate | 11n:Up to150Mbps |
Number of channels | 1-14 |
Frequency Range | 2.4-2.4835G |
Transmit power | 12-15DBM |
interface | 1AEthernetPort, 1 5V power input interface |
antenna | |
Antenna type | External 6DB rod antenna or external 2DB rod antenna (choose one of the two) |
Function parameter | |
WIFIOperating mode | Wireless network card/wireless access point/wireless router |
WDSFeatures | stand byWDSWireless bridging |
Wireless security | wirelessMACAddress filtering |
Wireless security function switch | |
64/128/152BitWEPencryption | |
WPA-PSK/WPA2-PSK、WPA/WPA2Security Mechanism | |
Network management | RemotelyWebmanagement |
Configuration file import and export | |
WEBsoftware upgrade | |
Other parameters | |
Status Indicator | Status indication |
Environmental standards | Operating temperature：-20-70℃ |
Working humidity：10%-90%RH（Non-condensing） | |
storage temperature：-40-80℃ | |
Storage humidity：5%-90%RH（Non-condensing） | |
Other properties | Band bandwidth optional：20MHz、40MHz，automatic |
