Smart AI offline face recognition module
·The module main control adopts RISC-V dual-core 64-bit CPU, with the highest possible
Up to 1 TOPS computing power, CPU power consumption is only 0.3W;
·The module is concise, the size is small, only 25.4*25.4*2.60 mm;
Built-in Al face recognition algorithm and model library, start super fast; ARM,
8 and 32-bit microcontrollers such as MSC51 can be easily driven with very few drive codes;
·The module has a wide range of applications and can be used in time and attendance systems, access control systems, smart door locks,
Safe, locker, member management, mobile payment, smart front desk, people
Face verification, device security login, etc.

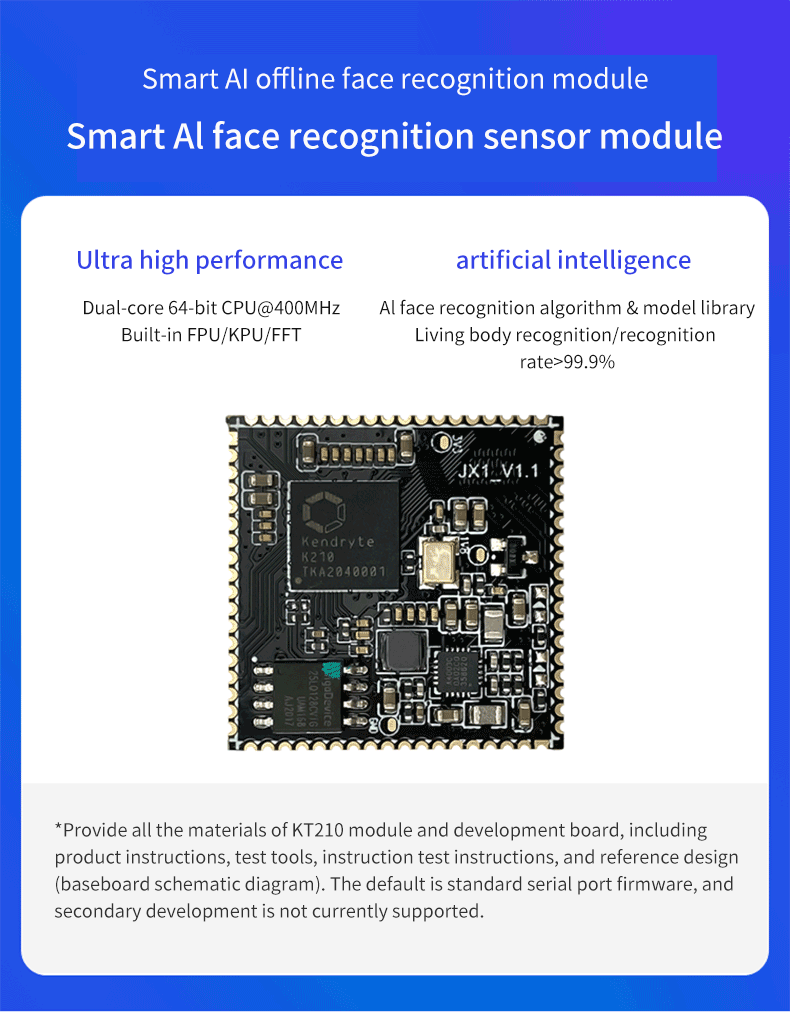

(Module-Front)
(Module-back)
(Beta-front)
(Beta-back)
Product hardware | |
Kernel | RISC-V Dual Core 64bit，with FPU |
Main frequency | 400MHz/overclockable to 600MHz |
SRAM | Built-in 8M Byte |
Image Identification | QVGA@60fps/VGA@30fps |
Speech Recognition | Microphone array(8mics) |
Network model | Support YOLOv3/Mobilenetv2/TinyYOLOv2/face recognition, etc. |
Deep learning framework | Support mainstream frameworks such as TensorFlow/Keras/Darknet/Caffe |
Peripheral interface | FPIOA/UART/GPIO/SPI/I2C/I2S/TIMER |
Video processing | Neural Network Processor KPU FPU meets IEEE754-2008 standard Audio processor APU Fast Fourier Transform Accelerator FFT |
Other parameters | |
Template scheme | Kanzhi K210 |
Sheet parameters | Button *2 Dual cameras*1 5V USB Type-C interface 3.2 inch TFT screen 8MB SRAM (of which 2MB is used for Al) Onboard 16MB Flash |
Product Size | Module: 25.4*25.4*2. 6mm Sheet: 95.8*64*9.8mm |
Supply voltage | receive：16mA send：0dBm/18mA;10~12dBm/120mA Low power consumption：200uA |
temperature | 4.0-5.2V(typical 5V)@400mA |
Operating temperature | -40°C-+85*C |
