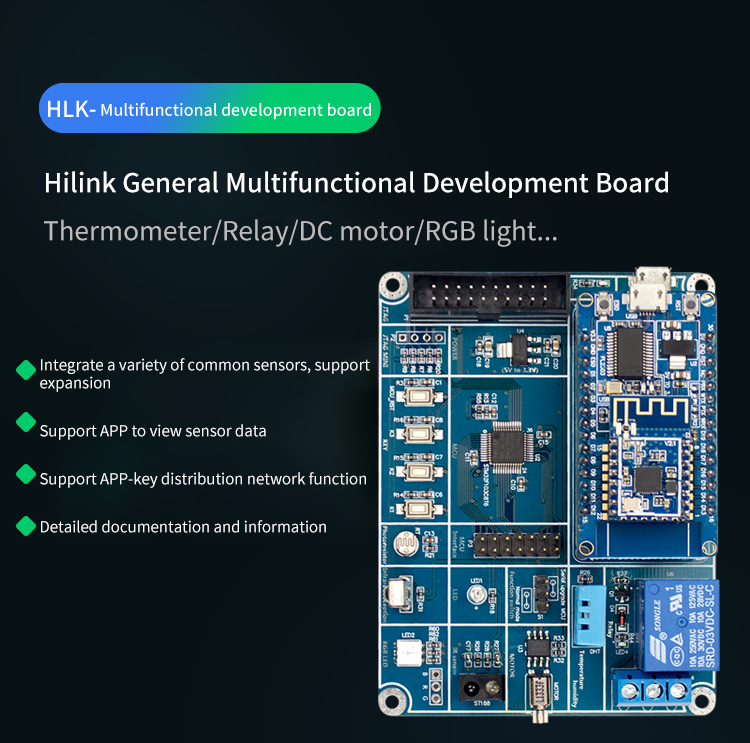

Universal multifunctional development board
The universal multifunctional development board integrates DHT11 thermometer and hygrometer, relay, DC motor, infrared photoelectric module st188, integrated infrared receiver, RGB three-color light, photoresistor, JTAG interface, power interface, USB interface, function buttons, etc., reserved WiFi module interface

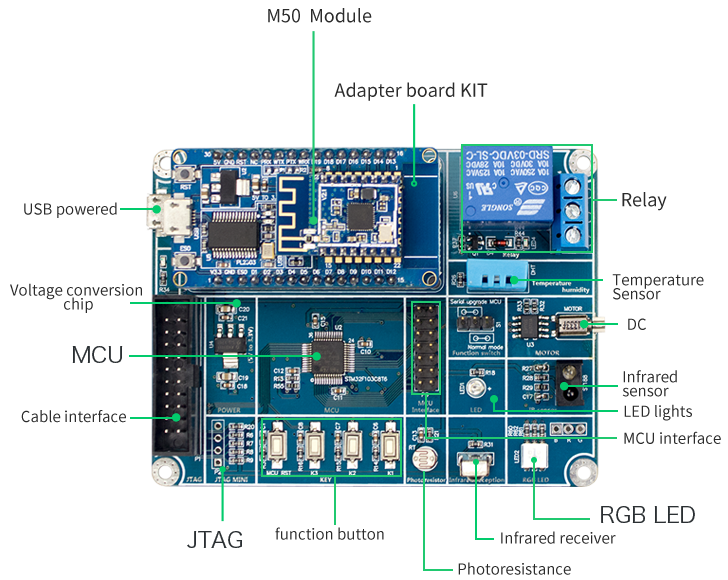

Hardware function description
Infrared DetectorsCan detect whether there is obstruction
RGB LEDProgrammable full color LED light
DC motorProgrammable forward and reverse rotation and speed control motor
Temperature and humidity sensorCan detect ambient temperature and humidity
Three programmable buttonsUndefined
Infrared receiverReceive infrared signal
WiFi module interfaceExternal WiFi module (default M50 module)
Relay interfaceControl relay switch
JTAG interfaceDebug interface
reserved portMCU unused pins
USB interfaceUniversal multi-function development board power supply port

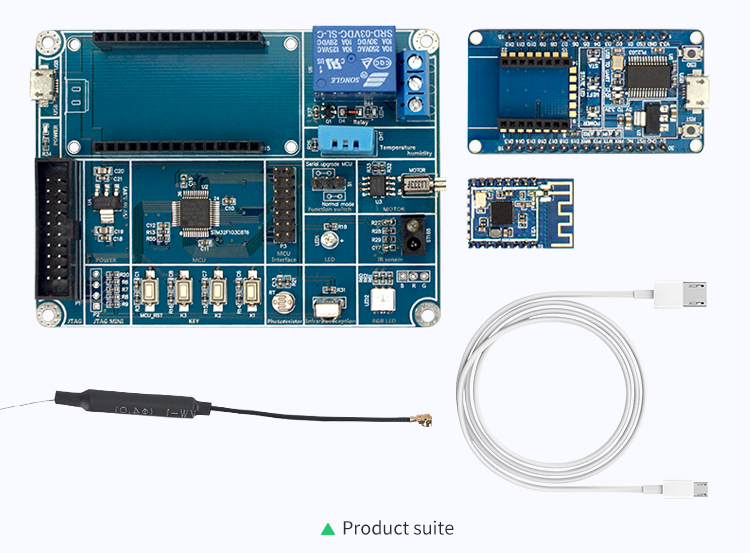

M50 module + M50 function base board + multifunctional development board
+1 USB cable + 1 2.4G antenna
Question 1: Where can I download the module product information?
After placing an order, you can leave your email address to the customer service, or directly visit the official website of Hlktech Electronics www.hlktech.com and click "Product Center" to download the corresponding product information
Question 2: Which one does the multi-function development board APP use?
Directly search for "Smart Life Manager" APP-Hilink in the application store, download, install and register.
Question 3: APP controls RGB lights/DC motors/relays
After the development board has completed the network configuration, the development board can be controlled by operating the corresponding functions of the APP.
Hardware function description | |
Infrared Detectors | Can detect whether there is obstruction |
RGB LED | Programmable full color LED light |
DC motor | Programmable forward and reverse rotation and speed regulating motor |
Temperature and humidity sensor | Can detect ambient temperature and humidity |
Three programmable buttons | undefined |
Infrared receiver | Receive infrared signal |
WiFi module interface | External WiFi module (default M50 module) |
Relay interface | Control relay switch |
JTAG interface | Debug interface |
reserved port | MCU unused pins |
USB interface | Universal multi-function development board power supply port |
