220 to 12V12W step-down module with EMC circuit
DC/DC-110V 10W power module selection
MULTIPLE SPECIFICATIONS AVAILABLE
Wide voltage 85-305VAC/120-432VDC input 12W regulated single output
MODEL | POWER | VOLTAGE | ELECTRICITY |
HLK-12M03A | 12W | 3.3V | 3000mA |
HLK-12M05A | 12W | 5V | 2400mA |
HLK-12M09A | 12W | 9V | 1333mA |
HLK-12M12A | 12W | 12V | 1000mA |
HLK-12M15A | 12W | 15V | 800mA |
HLK-12M24A | 12W | 24V | 500mA |
*The same series of products have the same size and pins | |||

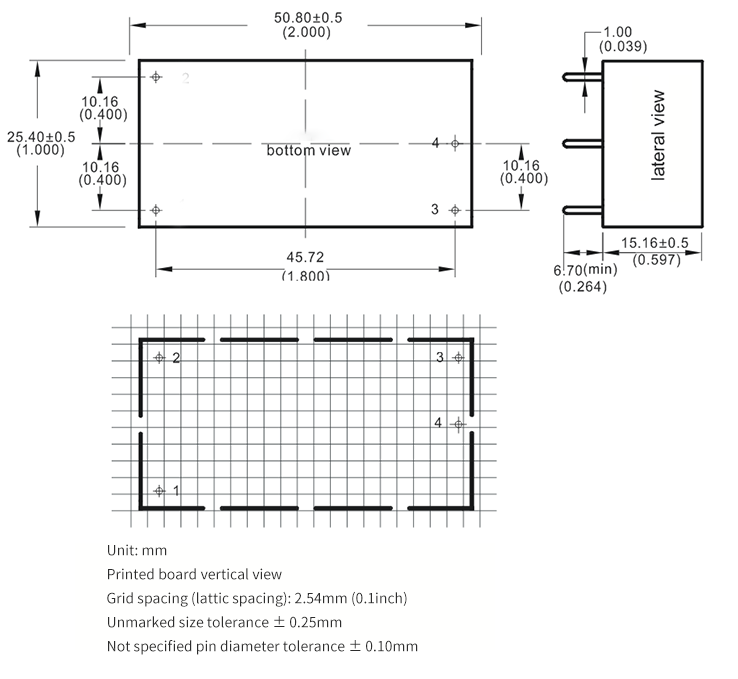

*International standard size 50.8×25.4×15.16mm |
Wide range input: 85-305VAC/120-432VDC
Input and output isolation withstand voltage 3000VAC
No-load power consumption ≤0.1W
High efficiency, conversion efficiency up to 86% (Typ)
Operating temperature range: -25°C~+75°C
Fully enclosed plastic housing, in line with UL94V-0 level
Good output short circuit and over current protection and self-recovery
International standard pin, PCB board in-line installation
Potting and sealing with high-quality environmentally friendly waterproof and thermal conductive glue, dustproof, moistureproof, shockproof and flame retardant
Meet UL/CE/EMC and safety testing requirements
Can be used in medical, industrial control, electric power, instrumentation, communication, railway and other fields

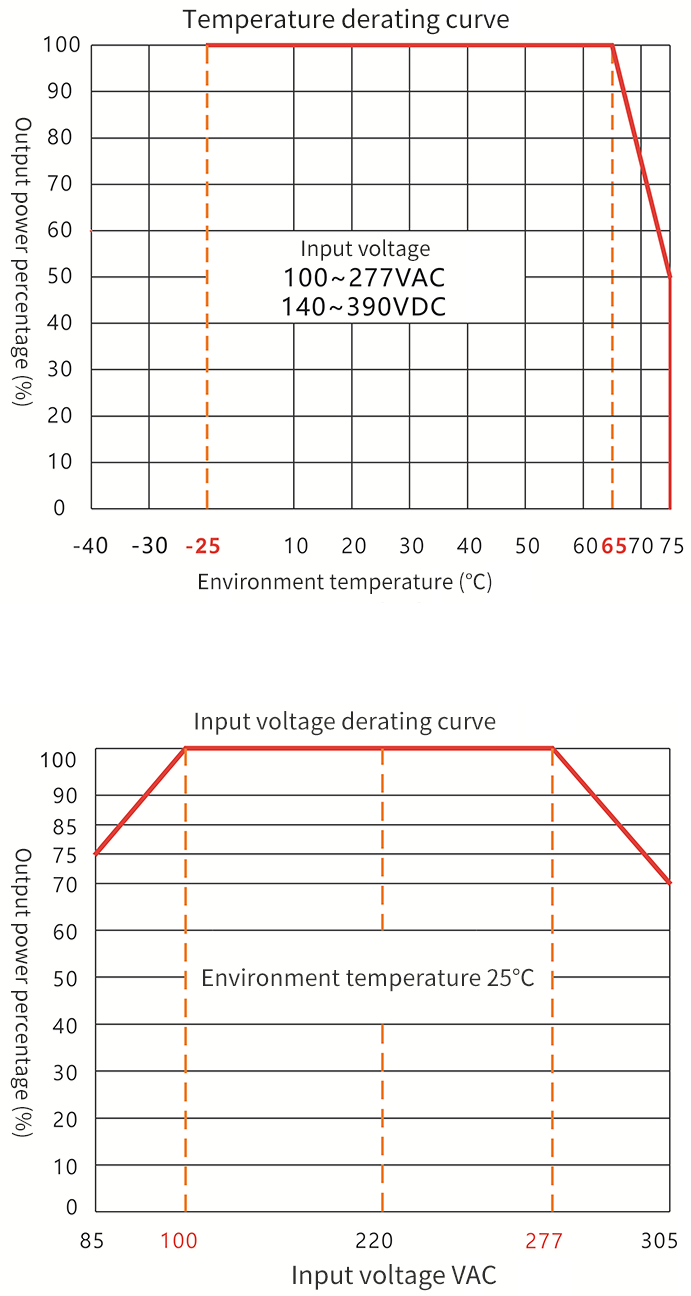

Note 1: The input voltage is 85~100VAC/277~305VAC/120~140VDC/392~432VDC, and voltage derating is required on the basis of the input voltage derating curve.
Note 2: This product is suitable for use in a natural air cooling environment. If it is used in a closed environment, please contact our company.
Typical EMC application diagram and recommended parameters
1. The output filter capacitor C1 removes high-frequency noise. It is recommended to use a 1μF ceramic capacitor. The capacitor withstand voltage derating is greater than 80%.
2. The output filter capacitor C2 is an electrolytic capacitor. It is recommended to use a high frequency and low resistance electrolytic capacitor with a capacity of 100uF/1A output current. The capacitor withstand voltage derating is greater than 80%.
3. TVS tube is recommended to protect the subsequent circuit (when the module is abnormal). Recommend to use 600W model
Recommended for 5V output: SMBJ7.0A;
Recommended for 9V output: SMBJ12.0A;
Recommended for 12V output: SMBJ20A;
15V output recommended: SMBJ20.0A;
Recommended for 24V output: SMBJ30.0A;
48V output recommended: SMBJ64A
4. MOV is a varistor, recommended model: 10D561K (1000V surge) or 14D561K (2000V surge), which is used to protect the module from damage during lightning surge.
5. For general application requirements of customers, use the recommended circuit shown in Figure 1 and Figure 2. If there is an EMC requirement, please use the recommended circuit shown in Figure 3.
The specific recommended values in Figure 3 are as follows:
1) Varistor MOV: Recommended model: 14D-561K, which is used to protect the module from damage during lightning surge.
2) Safety capacitors CY1, CY2: 1000pF/400VAC;
3) Safety capacitor CX: 0.1μF/275VAC;
4) Common mode inductance LCM: 20mH-30mH;
5) FUSE (fuse tube): must be connected, the recommended specification is 3.15A/250V, slow break.
Ripple & noise test: twisted pair method 20MHz bandwidth
testing method:
1. Ripple noise is connected using 12# twisted pair, the oscilloscope bandwidth is set to 20MHz, 100M bandwidth probe, and 0.1uF polypropylene capacitor and 47uF high frequency low resistance electrolytic capacitor are connected in parallel to the probe end, and the oscilloscope sampling uses Sample sampling mode .
2. Connect the power input terminal to the input power supply, and the power output is connected to the electronic load through the fixture board. For testing, use a 30cm±2cm sampling line to sample directly from the power output port. The power line selects the corresponding wire diameter wire with insulation according to the output current. (As shown in FIG)
Pin description:
1: AC (L) live wire input; 2: AC (N) neutral wire input; 3: +Vo output positive; 4: -Vo output ground
*Note: If the definition of each pin of the power module is not consistent with the selection manual, the marking on the physical label shall prevail.
Environmental conditions | |
Operating temperature | -40~+75℃ |
storage temperature | -40~+85℃ |
Relative humidity | 10~90%RH |
Cooling method | Natural cooling |
Atmospheric pressure | 80~160Kpa |
Altitude | ≤2000m |
vibration | Vibration coefficient 10~500Hz, 2G10min./1cycle60min.each along X,Y,Z axes Meet the requirements of secondary road transportation |
Input characteristics (normal temperature test) | |
Rated input voltage | 220VAC/310VDC |
Input voltage range | 85-305VAC/120-432VDC |
Input frequency range | 50Hz(typical) |
Input Current(max) | 0.30A(115VAC)/0.15A(220VAC) |
Inrush current | 10A(115VAC)/20A(220VAC) |
Leakage current | 0.5mA TYP/230VAC/50Hz |
Recommended value of external fuse | 3.15A/250VAC slow break fuse |
Hot swap | not support |
Remote | No remote control |
Output characteristics | |
Output voltage accuracy | ±1.0%(Tpy, input full voltage, any load) |
Linear adjustment rate(max) | ±0.5 %(Nominal load) |
Load Regulation(max) | ±1.0 %(Nominal voltage, 20%~100% load) |
No-load power consumption | 0.1W(Input 115/220VAC) |
Start delay time | 100mS(Input nominal voltage/full load) |
Power-down hold time | 10mS(115VAC)/60mS(220VAC) |
Output short circuit protection | Sustainable, self-healing |
Ripple & noise | ≤100mVp-p(Tpy:50) |
