AC-DC isolation switching power supply module 30M12 220V to 12V2.5A30W regulated GaN gallium nitride power supply
Multiple specifications of power module options
MULTIPLE SPECIFICATIONS AVAILABLE
International universal voltage 85-264VAC/120-350VDC 30W power module, built-in EMC circuit, regulated single output
| MODEL | POWER | VOLTAGE | ELECTRICITY |
| HLK-30M05 | 30W | 5V | 6000mA |
| HLK-30M09 | 30W | 9V | 3333mA |
| HLK-30M12 | 30W | 12V | 2500mA |
| HLK-30M15 | 30W | 15V | 2000mA |
| HLK-30M24 | 30W | 24V | 1250mA |
| *Same series product size and pin size are the same | |||
| *Size 57.5x 33.5X 23.5mm (±8%) | |||
Global universal input voltage 90~265VAC
Input and output isolation withstand voltage 3000VAC
Low power consumption, environmental protection, no-load loss < 0.1W
High efficiency, high power density
High reliability, long life design, continuous working time> 100,000 hours
Good output short circuit and over current protection and self-recovery
National standard pin, PCB board in-line installation
Potting and sealing with high-quality environmentally friendly waterproof and thermal conductive glue, dustproof, moistureproof, shockproof and flame retardant
Meet UL/CE/EMC and safety testing requirements
Can be used in medical, industrial control, electric power, instrumentation, communication, railway and other fields
Input part
Fuse/fuse: protection circuit when the module is abnormal (recommended: 2A/250Vac slow blow)
Varistor/ Varistor: Protection module during cumulative surge (recommended: 10D561K)

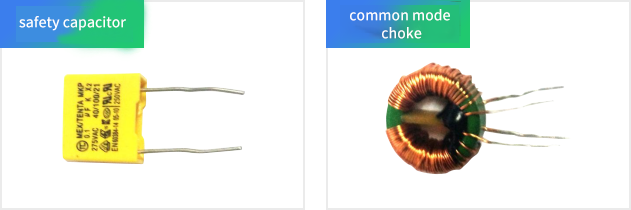

C1/Safety capacitor: filter, safety protection (EMC certification) (recommended: 0.1uF/275Vac)
L1/Common mode inductor: EMI filtering (recommended: inductance 10-15mH, current 1-2A)
*Fuse and varistor are basic protection circuits (required)
*If certification is required, safety capacitors and common mode inductors cannot be omitted
Output section
C2/filter capacitor
Filter, after adding this capacitor, the user can adjust the output ripple.
[Recommended] Aluminum electrolytic capacitors, with a capacitance value of 100-220uF, and withstand voltage derating greater than 75%.
RL/load
load
*Note: If the definition of each pin of the power module is not consistent with the selection manual, the marking on the physical label shall prevail.
Environmental conditions | |

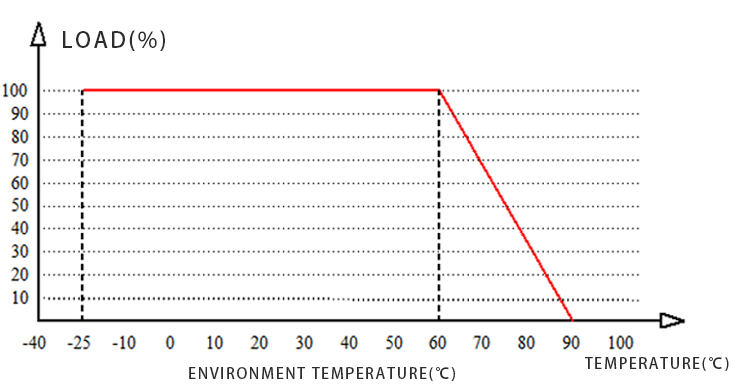

Operating temperature | -25~+60℃ |
storage temperature | -40~+85℃ |
Relative humidity | 5~95%RH |
Cooling method | Natural cooling |
Atmospheric pressure | 80~160Kpa |
Altitude | ≤2000m |
vibration | Vibration coefficient 10~500Hz, 2G10min./1cycle60min.each along X,Y,Z axes Meet the requirements of secondary road transportation |
Input characteristics (normal temperature test) | |
Rated input voltage | 100-240VAC |

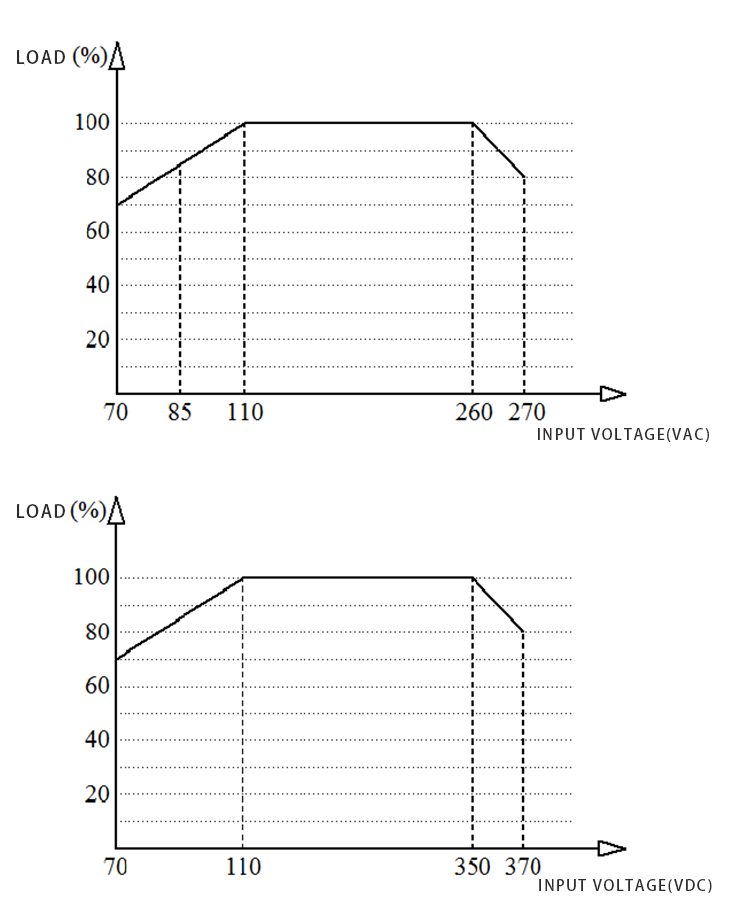

Input voltage range | 85-264VAC/70-350VDC |
Maximum input current | ≤0.8A |
Input surge current | ≤50A(typical) |
Input slow start | ≤50mS |
Long-term reliability | MTBF≥100,000 H |
External fuse recommendation | 2A/250V(Slow blow) |
Output characteristics | |
Output load | Load percentage 100%MAX |
Voltage regulation rate | ±0.2 %（Tpy） |
Load Regulation | ±0.5 %（Tpy） |
Output overcurrent protection | 150%-200%（Maximum load） |
Output short circuit protection | Sustainable, self-healing (do not damage the host) |
Ripple & noise | ≤100mVp-p |
