AC-DC step-down isolation switching power supply module 40M12A 220V to 12V40W regulated power supply + EMC circuit
Multiple specifications of power module options
MULTIPLE SPECIFICATIONS AVAILABLE
220V to 5V/9V/12V/15V/24V · 40W
| MODEL | POWER | VOLTAGE | ELECTRICITY |
| HLK-40M05A | 40W | 5V | 8000mA |
| HLK-40M09A | 40W | 9V | 4444mA |
| HLK-40M12A | 20W | 12V | 3333mA |
| HLK-40M15A | 40W | 15V | 2666mA |
| HLK-40M24A | 40W | 24V | 1667mA |
| *The same series of products have the same size and pins | |||

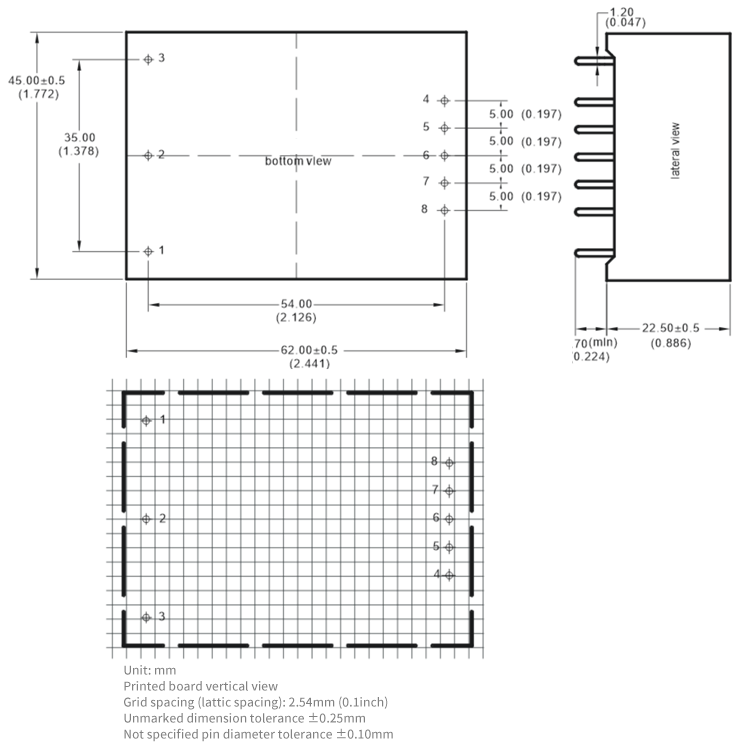

| *International standard pin size 62x45x22.5mm (earth 8% error) | |||
Global universal input voltage 90~265VAC
Input and output isolation withstand voltage 3000VAC
Low power consumption, environmental protection, no-load loss < 0.1W
Can work without peripheral circuits
High reliability, long life design, continuous working time> 100,000 hours
Good output short circuit and over current protection and self-recovery
International standard pin, PCB board in-line installation
Potting and sealing with high-quality environmentally friendly waterproof thermal conductive glue, dustproof, moistureproof, shockproof and flame retardant
Meet UL/CE/EMC and safety testing requirements
Can be used in medical, industrial control, electric power, instrumentation, communication, railway and other fields
Parameter recommendation
FUSE/fuse: 3.15A/300Vac/slow blow (protection circuit)
MOV varistor: 10D561K (protect the module from damage during accumulated surge)
C1/filter capacitor: 0.1UF ceramic capacitor, withstand voltage derating greater than 75%
C2/filter capacitor: high frequency low resistance electrolytic capacitor, capacity 100uF/1A output current, withstand voltage derating greater than 75%
TVS1: TVS tube is the protection circuit
RL/load: load
Remarks:
1. The fuse and varistor are basic protection circuits (required).
2. If certification is required, safety capacitors and common mode inductors cannot be omitted.
Pin description
1: FG grounded; 2: ACn input positive; 3: ACL input negative; 4: -Vo output positive; 5: +Vo output positive ；
*Note: If the definition of each pin of the power module is not consistent with the selection manual, the label on the physical label shall prevail.
Environmental conditions | |

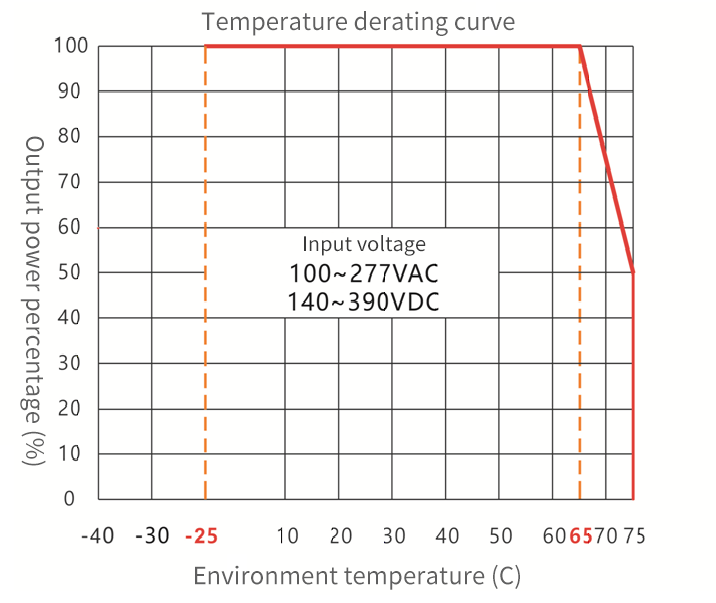

Operating temperature | -25~+60℃ |
storage temperature | -40~+85℃ |
Relative humidity | 5~95%RH |
Cooling method | Natural cooling |
Atmospheric pressure | 80~160Kpa |
Altitude | ≤2000m |
vibration | Vibration coefficient 10~500Hz, 2G10min./1cycle60min.each along X,Y,Z axes Meet the requirements of secondary road transportation |
Input characteristics (normal temperature test) | |

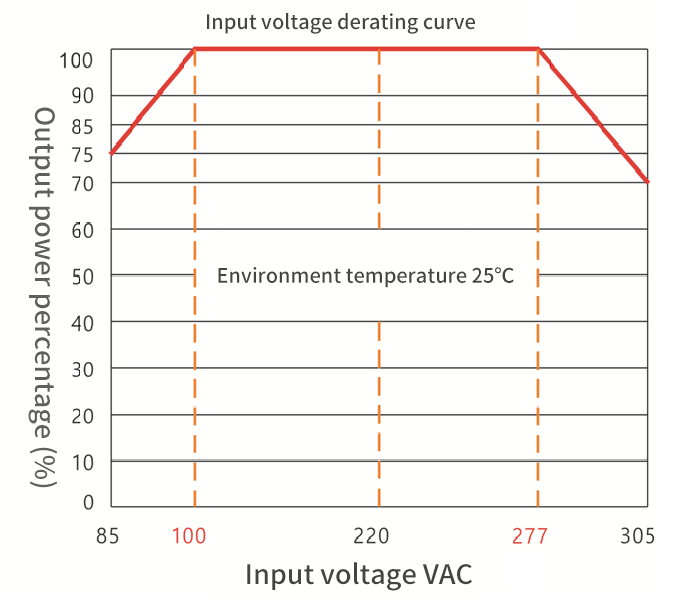

Rated input voltage | 100-277VAC |
Input voltage range | 85-264VAC/70-350VDC |
Maximum input current | ≤1A(@Vin=110Vac) |
Input surge current | ≤30A(typical) |
Input slow start | ≤100mS |
Long-term reliability | MTBF≥100，000H |
External fuse recommendation | 3.15A/300V(Slow blow) |
Output characteristics | |
Output load | Load percentage 100%MAX |
Voltage regulation rate | ±0.2 %（Tpy） |
Load Regulation | ±0.5 %（Tpy） |
Output overcurrent protection | 130%-150%（Maximum load） |
Output short circuit protection | Sustainable, self-healing (do not damage the host) |
Ripple & noise | ≤100mVp-p |
