Small size stable isolated power module
AC/DC-5W power module selection
MULTIPLE SPECIFICATIONS AVAILABLE

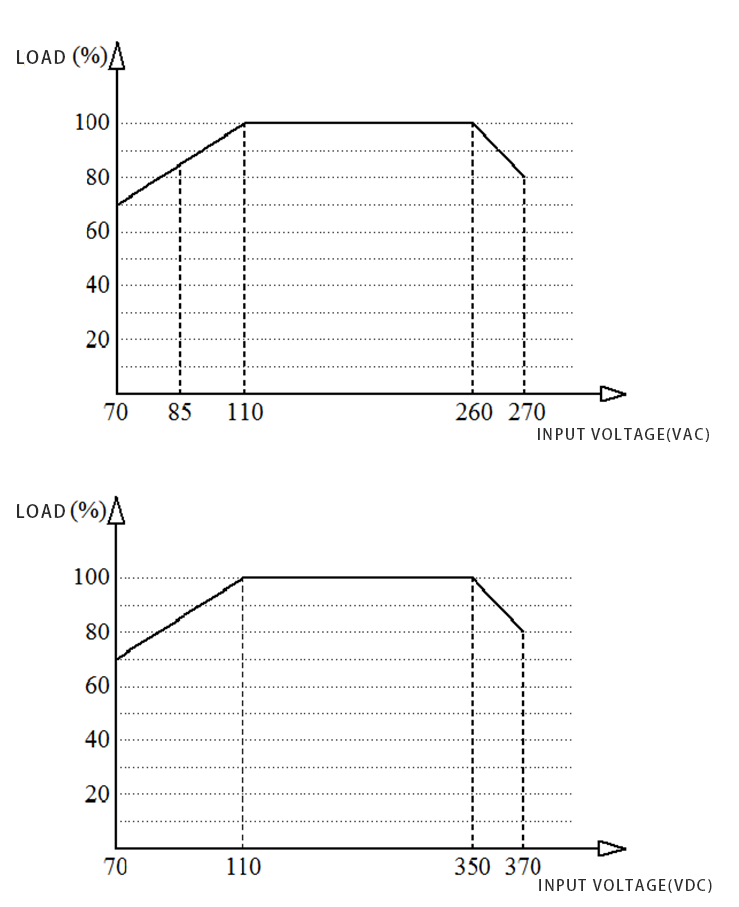

Global universal input voltage 85-264VAC/70-350VDC
| MODEL | POWER | VOLTAGE | ELECTRICITY |
| HLK-5M03 | 5W | 3.3V | 1500mA |
| HLK-5M05 | 5W | 5V | 1000mA |
| HLK-5M09 | 5W | 9V | 556mA |
| HLK-5M012 | 5W | 12V | 417mA |
| HLK-5M015 | 5W | 15V | 333mA |
| HLK-5M024 | 5W | 24V | 208mA |
| *The same series of products have the same size and pins | |||
| *Module size 38x23x18mm (+8% error) | |||
Global universal input voltage 90~265VAC
Input and output isolation withstand voltage 3000VAC
Low power consumption, environmental protection, no-load loss < 0.1W
High efficiency, high power density
High reliability, long life design, continuous working time> 100,000 hours
Good output short circuit and over current protection and self-recovery
International standard pin, PCB board in-line installation
Potting and sealing with high-quality environmentally friendly waterproof thermal conductive glue, dustproof, moistureproof, shockproof and flame retardant
Meet UL/CE/EMC and safety testing requirements
Can be used in medical, industrial control, electric power, instrumentation, communication, railway and other fields
Input characteristics (normal temperature test)
Rated input voltage100-240VAC
Input voltage range85-264VAC/70-350VDC
Maximum input current≤0.2A
Input surge current≤10A(typical)
Input slow start≤50mS
Long-term reliabilityMTBF≥100,000 H
External fuse recommendation1A/250Vac or 10Ω wire wound resistor
Input characteristics
Output loadLoad percentage 100%MAX
Voltage regulation rate±0.2 %（Tpy）
Load Regulation±0.5 %（Tpy）
Output overcurrent protection110%-150%（Maximum load）
Output short circuit protectionSustainable, self-healing (do not damage the host)
Ripple & noise≤100mVp-p
*Ripple noise test: rated input voltage, output full load. Use a 20MHz bandwidth oscilloscope to test with 10uF and 0.1uF capacitors on the load side.
Parameter recommendation
F1/Fuse: 1A/250Vac/10Ω wire wound resistor, slow blow
MMOV1 varistor: 10D561K (protect the module from damage during accumulated surge)
C1/C2 safety capacitor: 0.1uF/275Vac (filtering/safety protection/EMC certification)
L1/common mode inductance: inductance 10-30mH (test requirements: 1KHZ/0.3V current: 100-500mA), EMI filtering
Remarks
1. The fuse and varistor are basic protection circuits (required).
2. If certification is required, safety capacitors and common mode inductors cannot be omitted.

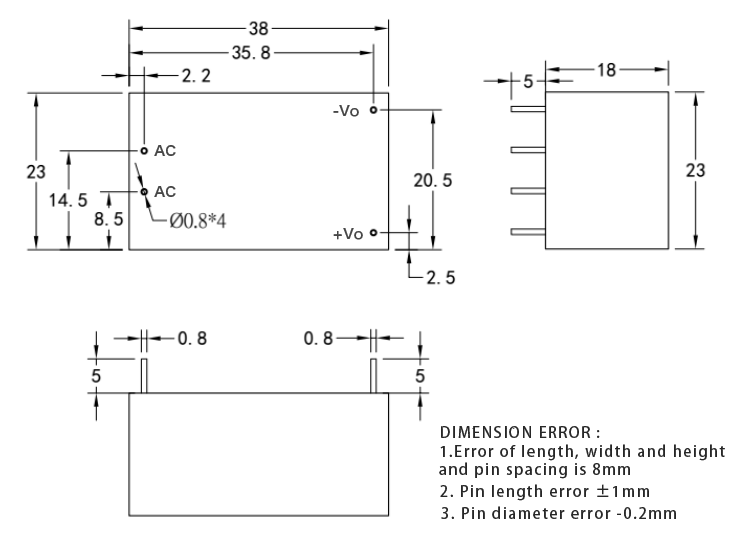

Pin description
1: AC input; 3: -Vo output negative; 4: +Vo output positive ;
*Note: If the definition of each pin of the power module is not consistent with the selection manual, the label on the physical label shall prevail.
Environmental conditions | |

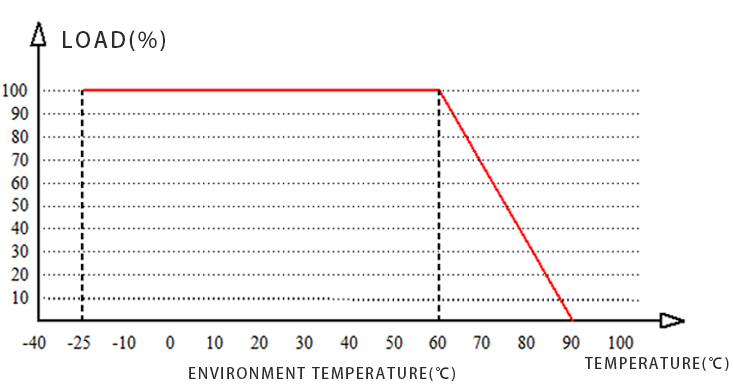

Operating temperature | -25~+60℃ |
storage temperature | -40~+85℃ |
Relative humidity | 5~95%RH |
Cooling method | Natural cooling |
Atmospheric pressure | 80~160Kpa |
Altitude | ≤2000m |
vibration | Vibration coefficient 10~500Hz, 2G10min./1cycle60min.each along X,Y,Z axes Meet the requirements of secondary road transportation |
Input characteristics (normal temperature test) | |
Rated input voltage | 100-240VAC |
Input voltage range | 85-264VAC/70-350VDC |
Maximum input current | ≤0.2A |
Input surge current | ≤10A(typical) |
Input slow start | ≤50mS |
Long-term reliability | MTBF≥100,000 H |
External fuse recommendation | 1A/250Vac or 10Ω wire wound resistor |
Output characteristics | |
Output load | Load percentage 100%MAX |
Voltage regulation rate | ±0.2 %（Tpy） |
Load Regulation | ±0.5 %（Tpy） |
Output overcurrent protection | 110%-150%（Maximum load） |
Output short circuit protection | Sustainable, self-healing (do not damage the host) |
Ripple & noise | ≤100mVp-p |
