We have been deeply involved in the industry for more than ten years, and have served more than 10W+ customers. WiFi modules, Bluetooth modules, power modules and other products are in more than 80 countries and regions, providing customers with professional and reliable IoT module products.

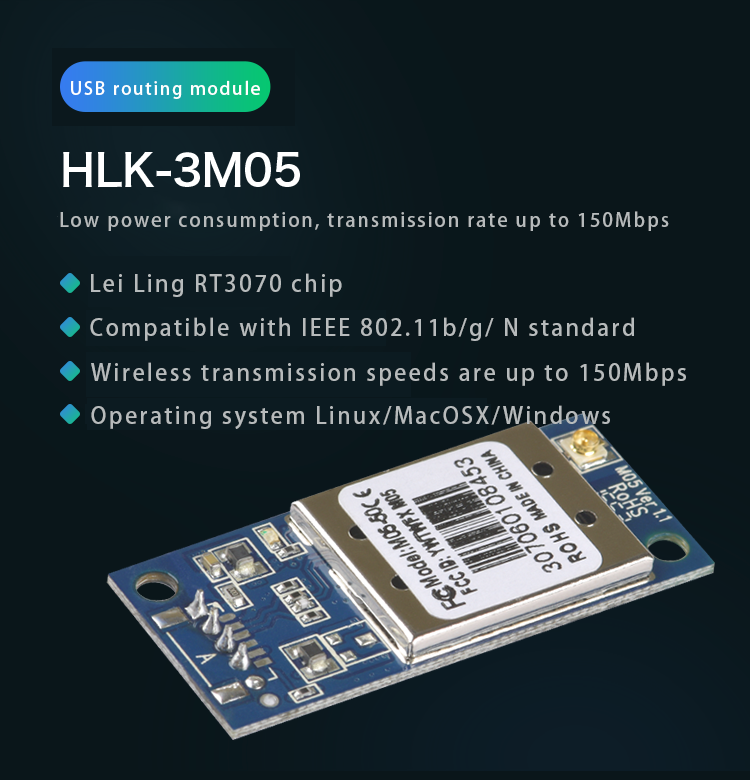

The built-in omni-directional smart antenna can adapt to different working environments, making it easy for users of desktop or laptop computers and other devices that need to realize wireless network to access wireless network.
basic parameter
core problemRalink RT3070
interface typeUSB2.0/1.1
Web standardsIEEE802.11b/g&802.11n(1T1R mode)
frequency range2.4-2.4835GHz
Wireless securityWPA/WPA2,64/128/152-bit VEP,VPS
antenna
antenna interfaceIPEX seat
other parameters
working voltage3.3VDC(or 5VDC)+/-5%
environmental standards
operating temperature：0-50℃
operating humidity：90%RH（noncondensing）
storage temperature：-20-70℃
Storage Humidity：90%RH（noncondensing）
operating system
Linux 2.6 X/Mac OSX
Windows CE
Windows 2000/ XP/Vista/ 7

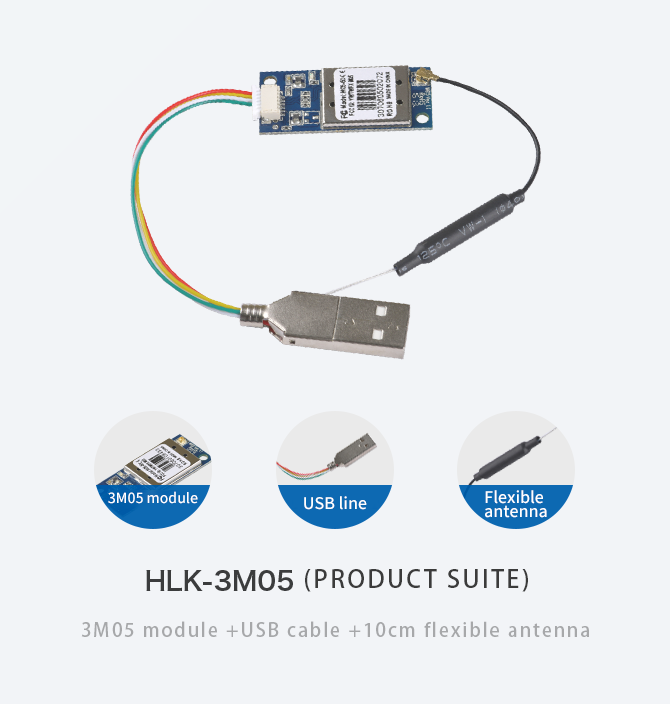

USB interface6 pins, 2.0mm spacing insertion
outside dimensions40.0 x 18.0x 8.8（The needle is high）mm
Widely used in plug-in network transmission electronic products, such as wireless network card, remote transmission, industrial intelligent control and other fields
Supported protocols and standards | IEEE 802.11B/G/N CSMA/CA ACK |
interface type | USB1.1 USB2.0 |
frequency domain | 2.4-2.4835GHZ |
Number of working channels | 14 |
data modulation | OFDM/DBPSK/DQPSK/CCK |
working mode | common control type(Infrastructure),Pear To Pear(Ad-Hoc) |
transmission rate | 135/54/48/36/24/18/12/9/6 /1M（self-adaption） |
spread-spectrum technique | DSSS（DSSS） |
sensitivity@PER | 54M/135M:-68dBm@10%PER11M:-85dBm@8PER 6M:88dBm@10%PER 1M: -90dBm@8%PER |
RFpower | 135M: 15DBM,54M:15DBM, 11M:19DBM |
LEDInstruction | Status indicator light |
transmission distance | Indoor farthest100meter，As far as outdoor300meter(It varies from environment to environment) |
OS Support | WIN2000/XP/VISTA/LINUX/WINCE/WIN7 |
working voltage | DC5v/3.3V +-0.2V |
service environment: | operating temperature:0ºC---40ºCstorage temperature:-40ºC---70ºCoperating humidity:10%---90% RHnoncondensingStorage Humidity:5%---90% RHnoncondensing |
